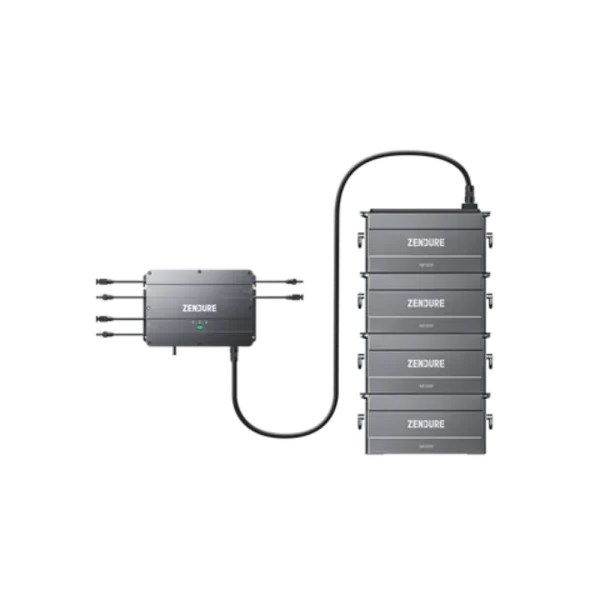

Zendure SolarFlow Balcony Solar Storage System

Zendure SolarFlow Balcony Solar Storage System – Specifications:

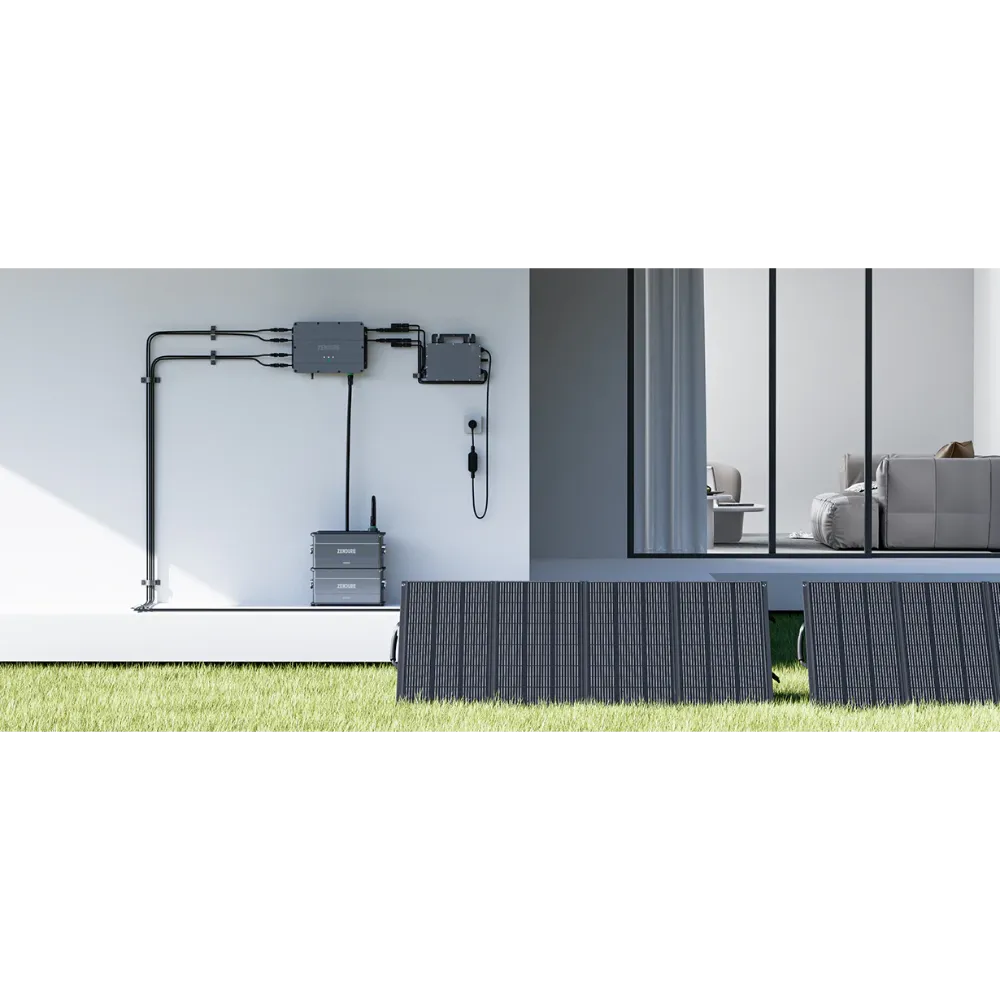

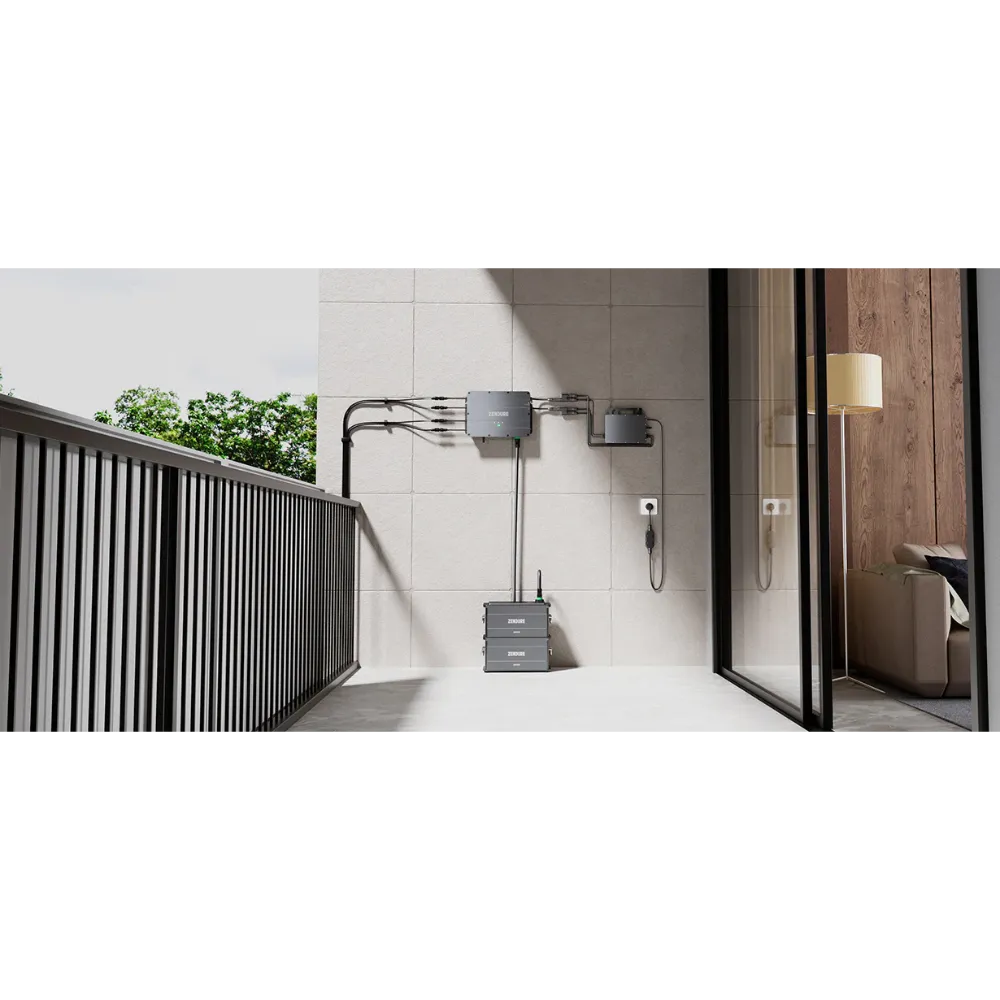

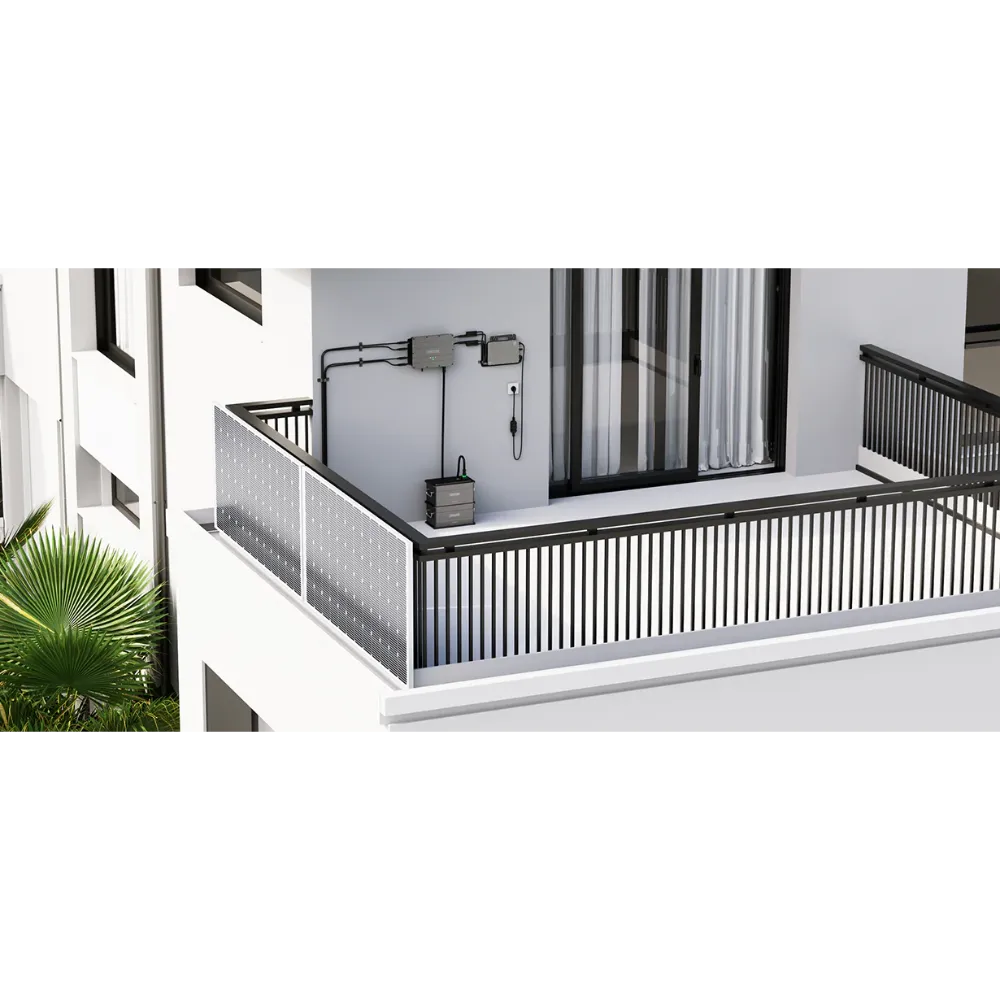

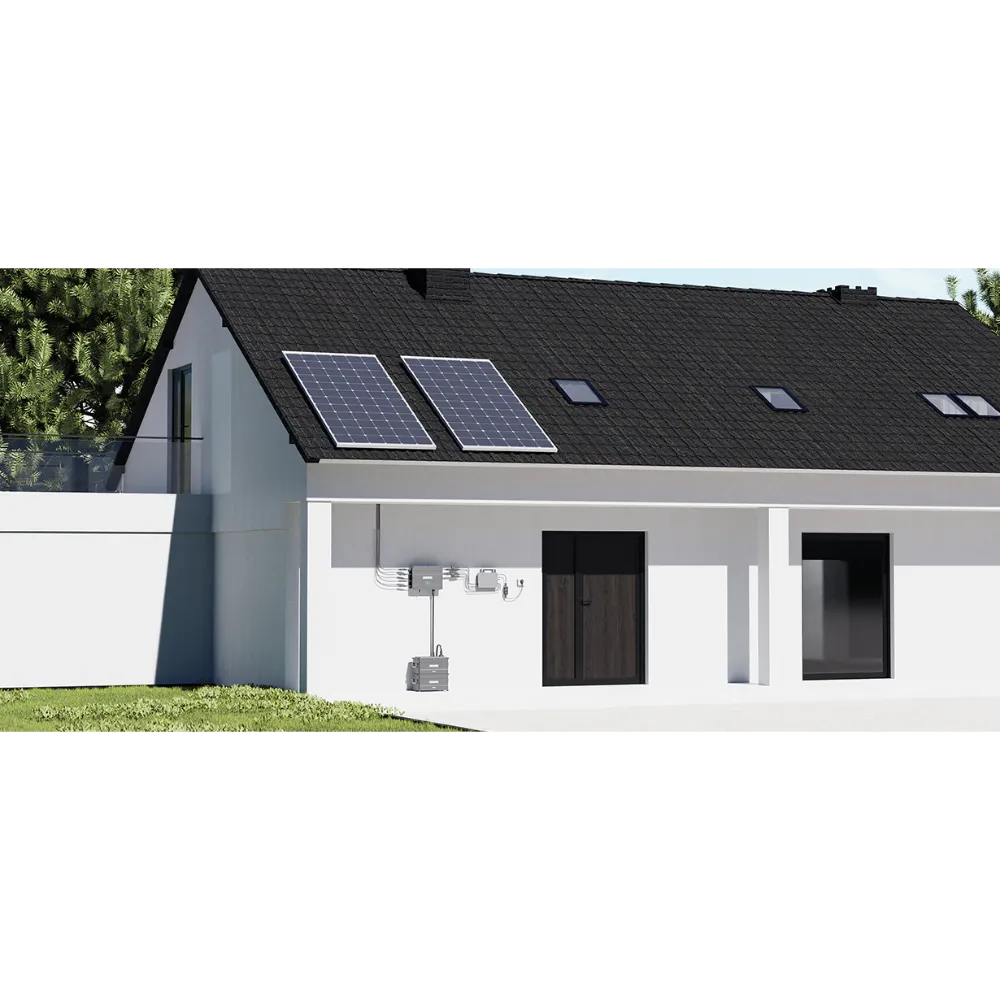

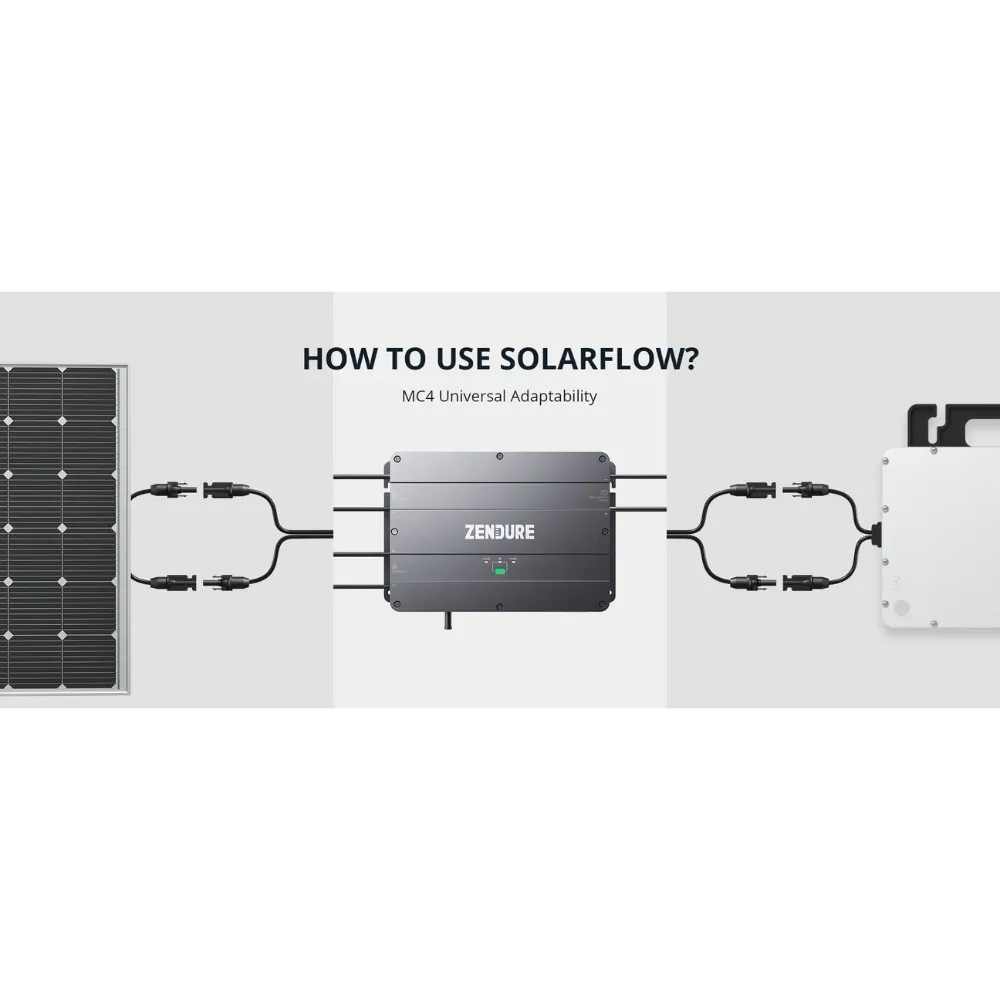

• What should be included to form a balcony energy storage system: Solar Panel + SolarFlow + Microinverter
• Purpose: If you have installed balcony PV or want to install it, and most of the solar power generation is wasted, you can buy SolarFlow to store electricity for use at night to have a greater extent to reduce electricity bills
• Type of compatible solar panels: The solar panels, working rate voltage range is 16-60V and the current is below 13A, can be used.

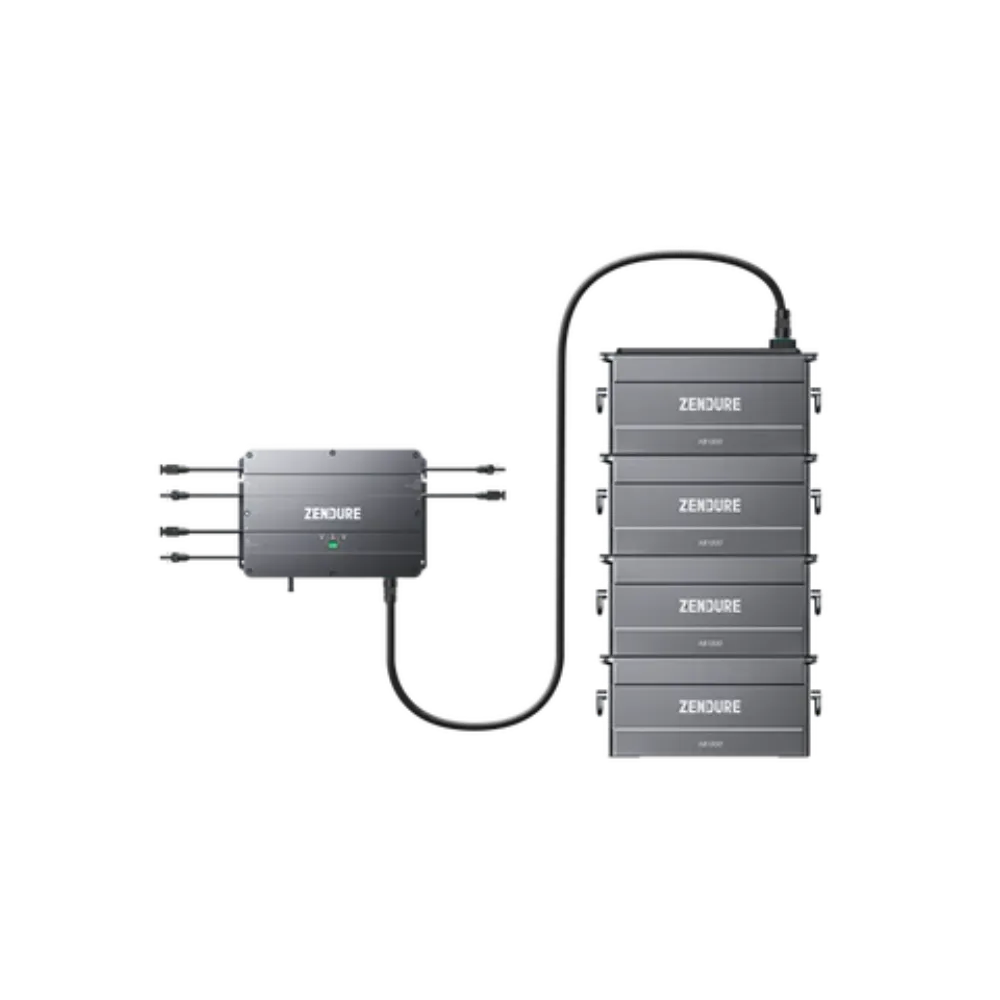

• System’s capacity: One AB1000 is 960Wh, SolarFlow Max extend up to 4 x AB1000, 3840Wh in total.
• Voltage of AB1000 battery: 48V
• Package includes: 1* Smart PV Hub 1200, 1*Add-on Battery 1000 (optional extra battery quantity: 4 in total), 2* microinverter cable (0.6m), 4*solar cable (3m), 1*battery cable (1.5m), 1*aerial, 2*MC4 connector 1-to-2 & 2* extend cable 0.6m (gift individually packaged), user manual, and warranty card.
• Safety certifications: FCC、CA65、CE、Rosh、Raech、TUV Mark & TUV CE

Smart PVHub Information

• Model: ZDSPV1200
• Weight：≈ 4.7kg
• Dimensions: 363×246×64mm
• Wireless type: Bluetooth, 2.4GHz Wi-Fi
• IP level: IP65
• Warranty: 10 years
• Recommended input PV module: 210-550W each
• Max input DC voltage: 60V
• PV input1: 16-60V=13A, 400W Max
• PV input2: 16-60V=13A, 400W Max
• Min DC input voltage: 16V
• Max DC short circuit current: 14.3A
• Number of MPPT: 2
• Max input power: 1200W Max
• Max input current: 25A
• Rate voltage: 48V
• Max input power (Charging AB1000): 800W
• Max input current (Charging AB1000): 16.6A
• Rate voltage (Charging AB1000): 48V
• Recommended Microinventer’s power (output to microinverter) : 400-1200W
• Rated output power (output to microinverter): 1200W
• Rated output current (output to microinverter): 30A
• Nominal voltage range (output to microinverter): 16-60V
• MPPT efficiency: 98%
• Output efficiency: 97%
• Protection: overvoltage, overcurrent, short circuit, temperature
• Working temperature: from -20 to 45°C

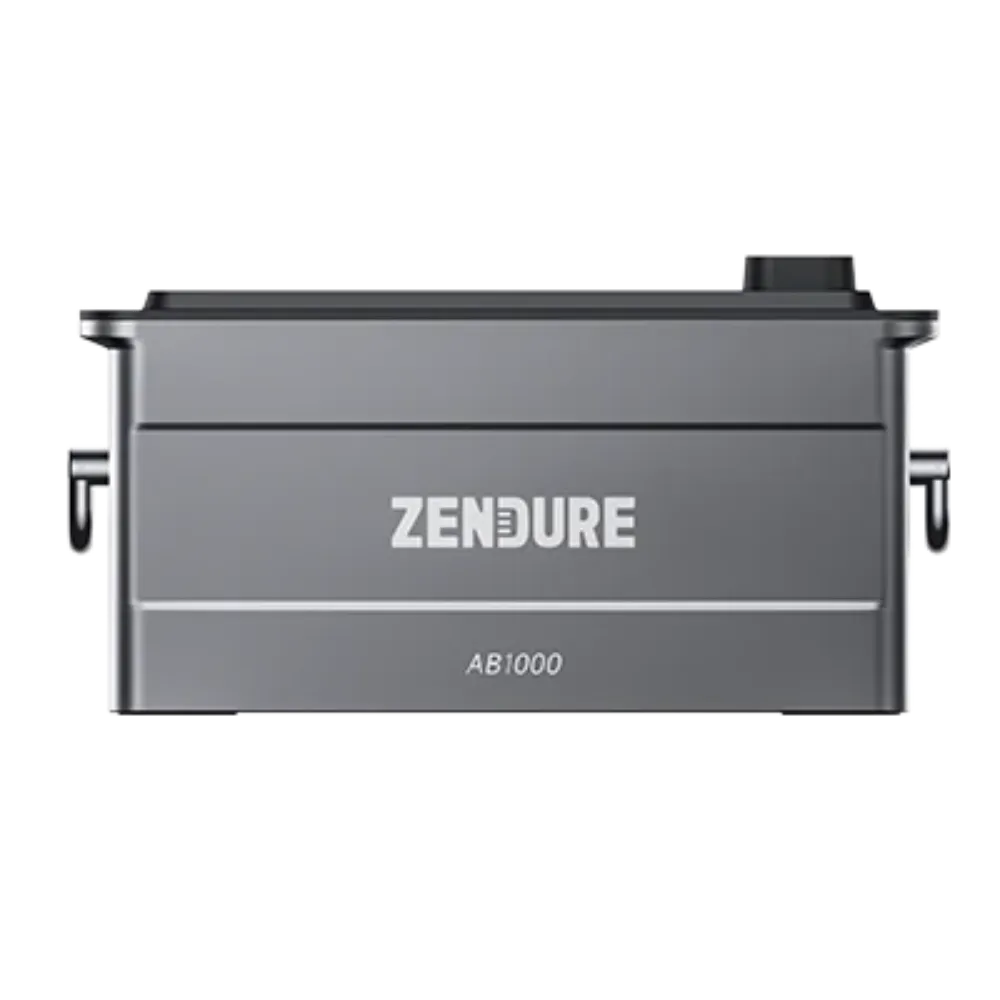

Add-on Battery 1000 (AB1000) Information

• Model: ZDAB1000
• Weight：≈11.5kg
• Dimensions： 350×200×186.5mm
• Capacity: 960Wh (20Ah/48V)
• Type: LiFePO4
• Cycle: 3000
• Input: Max 800W
• Output: Max 1200
• Extra battery quantity: 4
• Max expandable capacity: 960*4=3840Wh
• Protection: Charging overvoltage, charging overcurrent, short circuit, discharging overvoltage, temperature.
• Waterproof level: IP65
• Warranty: 10 years
• Charging temperature: from 0 to 45°C
• Discharging temperature: from -20 to 45°C
