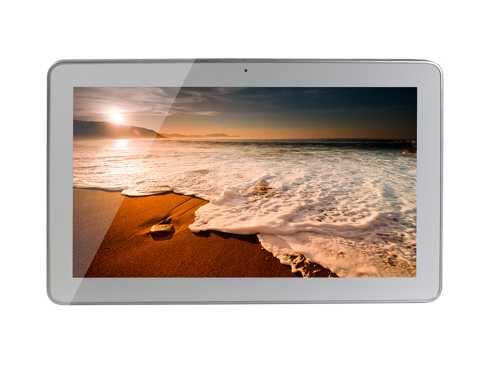

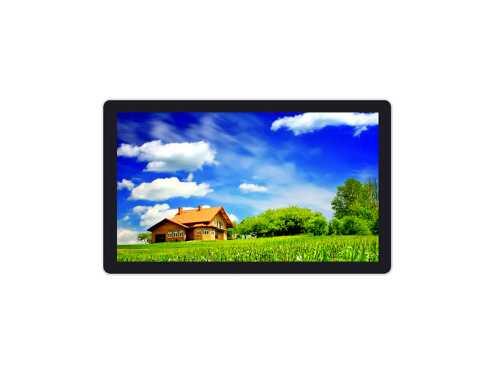

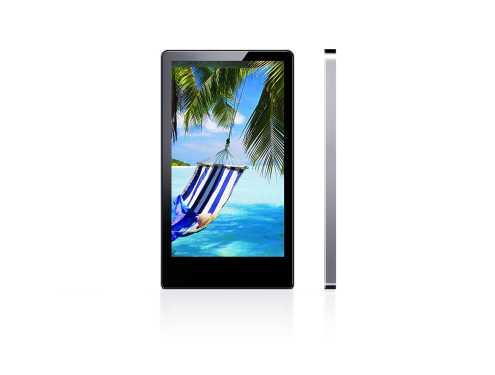

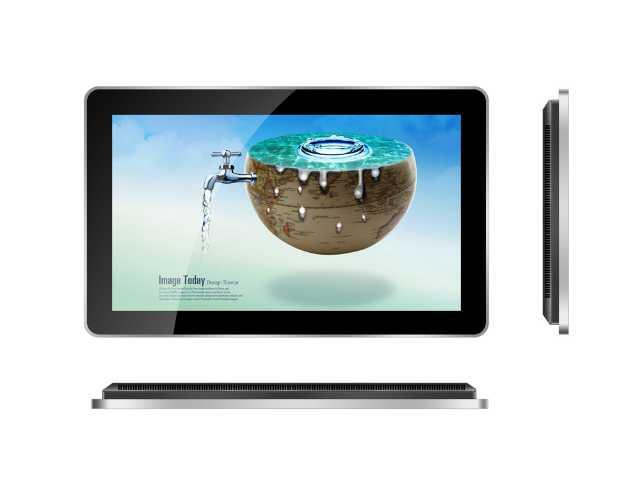

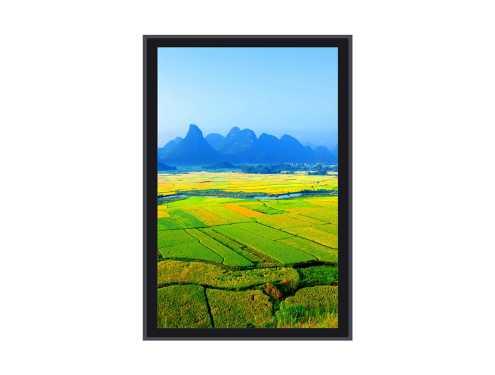

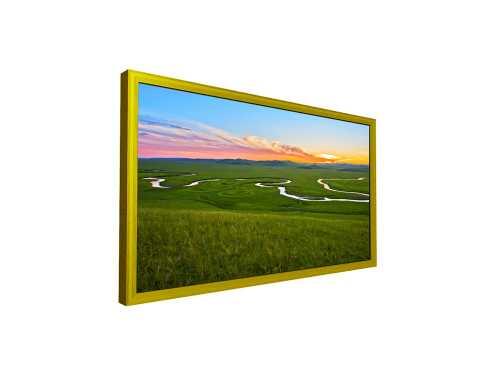

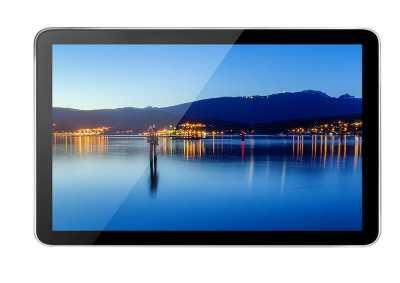

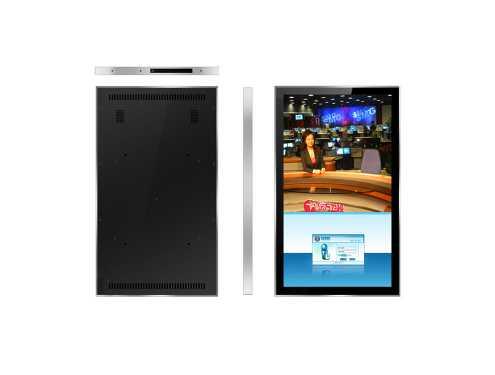

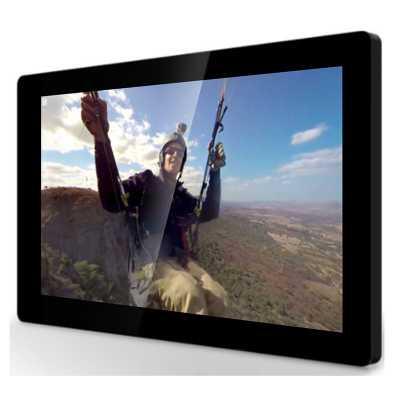

Wall Mounted Touch Screen Digital Signage

Android System Wall Mount Digital Signage

Notice: All our model prices include touch function application. If you need a model without touch function application the price is 50 euros less. The below specifications are referred to Android operating system and 43 inch screen. If you need Windows operating system or/and other dimensions we will send you the relevant specifications.

Model No                           SV-ZS43LR

LCD SCREEN (LG)

Screen Size                         43 inch

Panel                                    LG panel

Max Resolution                 1920*1080

Aspect Ratio                       9:16

Higher Brightness            350cd/㎡

Viewing Angle                   178°/178°/178°/178°

Contrast Ratio                   3000:1

Display Area                       940x529mm

Response time                  5ms

Service Life                        50,000Hrs

AUDIO

Built-in speakers              5W*2

POWER

Power Input                       AC(90-264)V/50－60HZ

Max Power                         ＜100W

GENERAL FEATURES

1.Auto play when power on

2.Display as scheduled terminal working time/program list /WIFI(150Mbps)

3.Display relevant graphic and text information according to the preset.

4.Inter-Cut play /loop playback/preset play

5.Pic, video, music, RSS, slide show, slides, web pages, text mode, etc

6.Display of logo, date/time/week, weather forecast and timely subtitles

7.Remote command parsing/process: Inter-Cut play/restart terminal/sleep/ wake up/timing switch/set the volume/Applications upgrade online

CPU                                    RK3288 Quad-Core, 1.8G(android5.1)

Memory                             2G DDR3

Storage                               8G

Resolution                         Max 1080P

Operation System           Android 5.1

Network                            Ethernet/WiFi/BT4.0/wireless peripheral extensions

Video format                    Support wmv, avi flv rm rmvb mpeg  ts mp4, etc

Pic format                         Support BMP、JPEG、PNG、GIF, etc

Port                                    USB2.0*2、HDMI Output*1，TF *1，RJ45 *1

System Support               Support USB/TF Card/Network upgrading

Peripheral(optional）   3G/4G all-network module/camera/card reader and so on (optional)

GENERAL INFORMATION

Case Material                   Surface: 3MM toughened glass on the surface;

Frame: aluminum alloy sections; Backplane: 1.5mm sheet metal

Color                                  Black and silver

Operation                         Indoor

Work Temperature        0℃-50℃

Storage Temperature    -20℃～60℃

Product Weight              26KG/pcs

Carton Weight                1KG/pcs

Wooden Case Size         1230*870*240mm (1unit/Wooden Case)

Wooden Case Weight   15KG/pcs (1unit/Wooden Case)

Wooden Case Size         1230*870*950mm (5units/Wooden Case)

Wooden Case Weight   30KG (5 units/Wooden Case)
