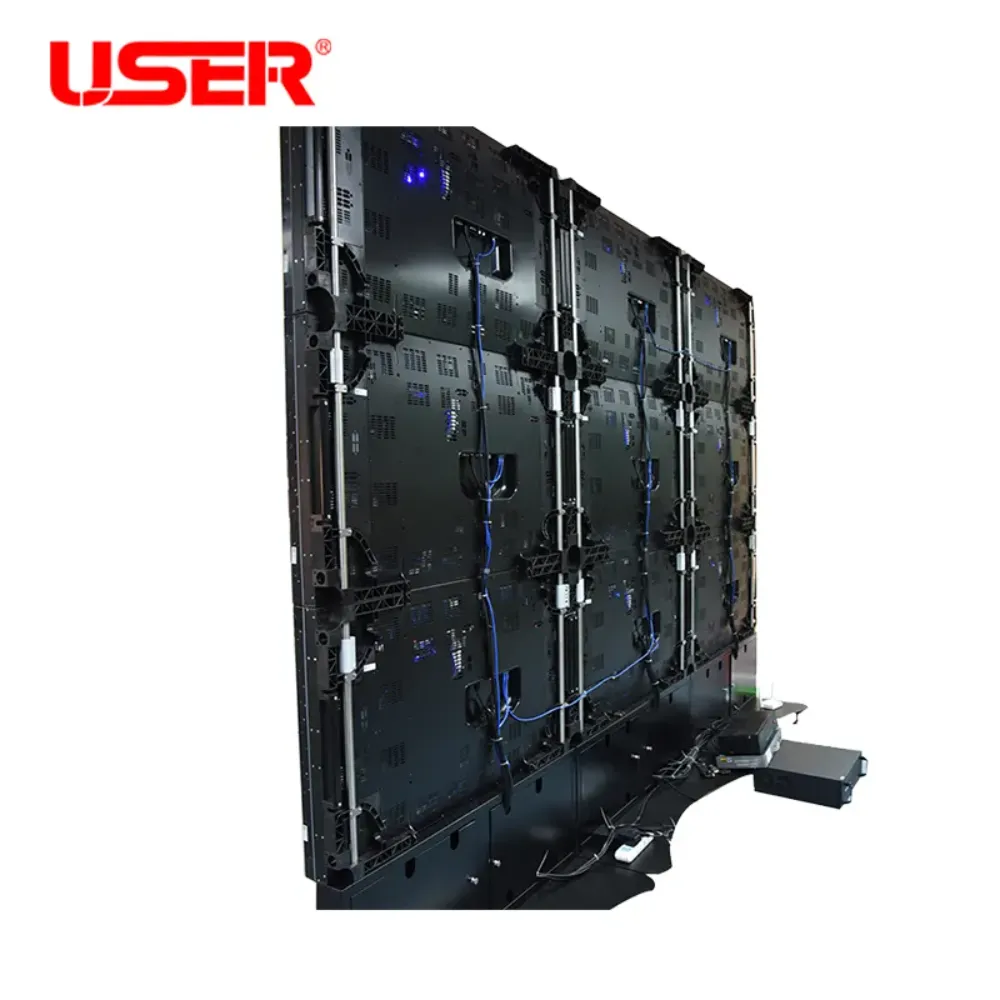

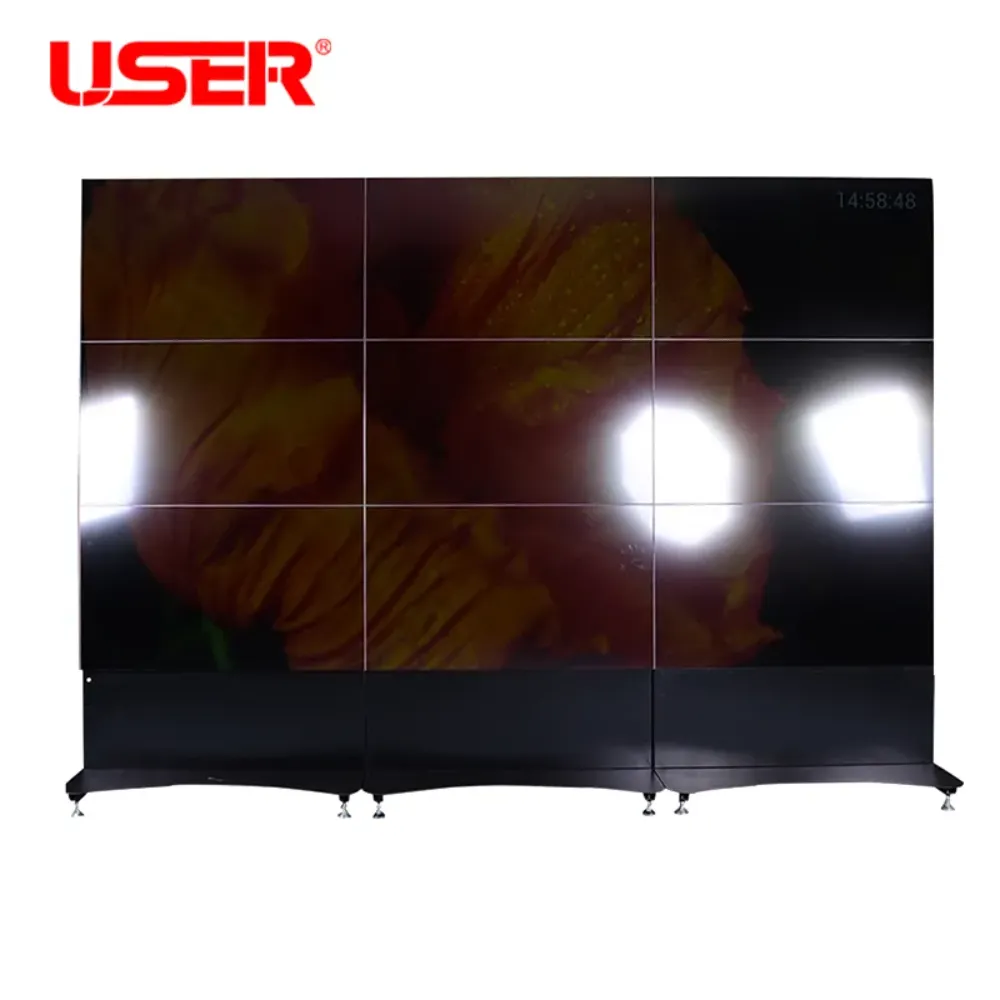

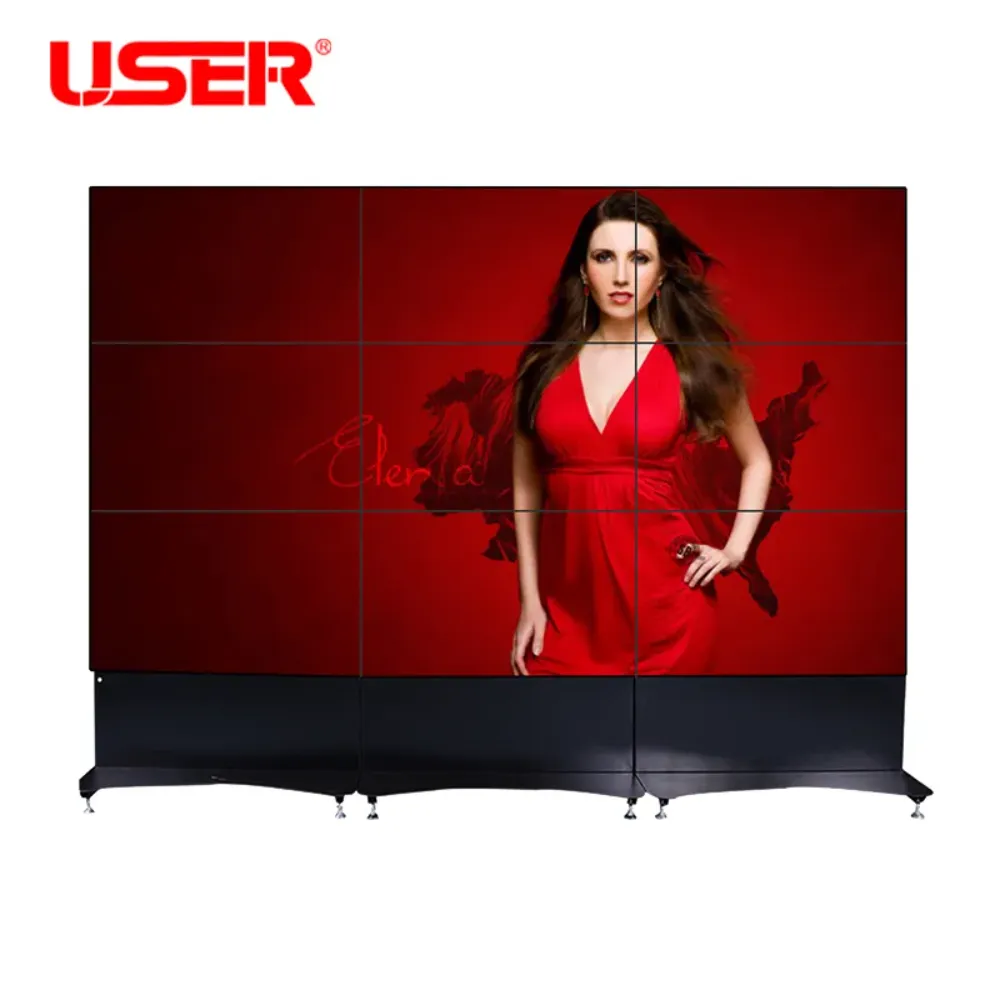

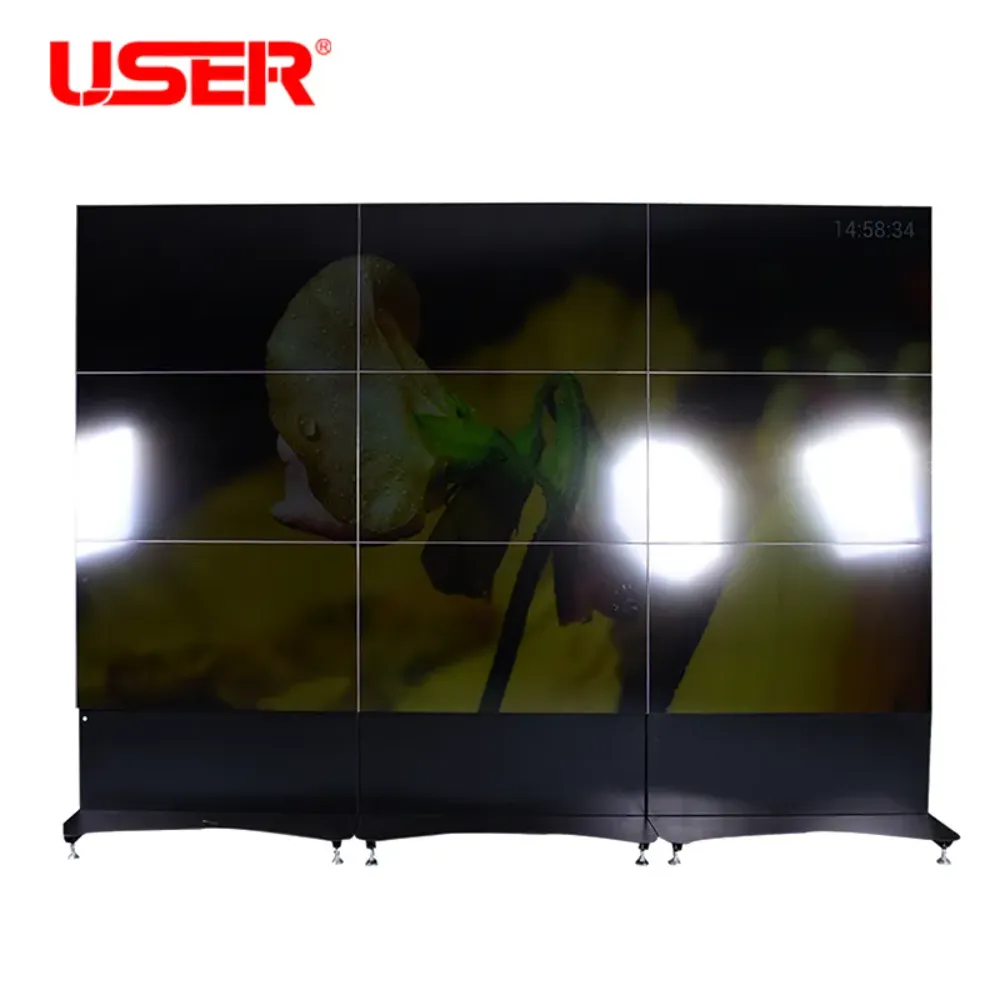

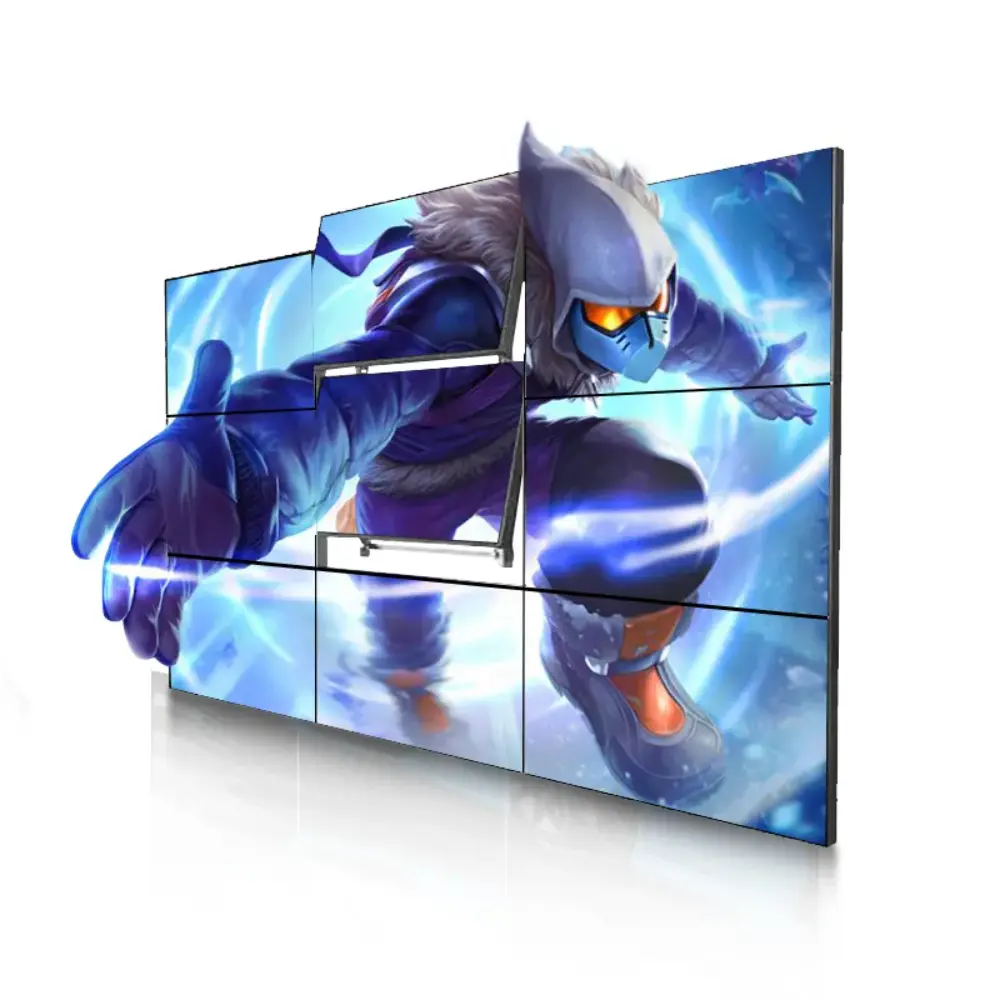

Name: Interactive Multitouch Digital Video Wall System
SKU: NEWTECH4710180829101
Availability: BackOrder

Screen Size

Pixel Pitch

Description

LCD Video Wall Screen ( DID)
Specifications
Model No.		US-PJ4902
Panel Size		46”, 49”, 55”, 65”
Aspect Ratio		16:9
Pixel Pitch		P3, P5, P6
Max Resolution Support		1920×1080/1366×768
Color		8Bit,16.7M
Brightness (nits)		450cd/m2
Contrast		4000:1
Visual Angle (H/V)		178°
Response Time		<=6ms
Life(hrs)		>60,000(hrs)
Input and output
DVI		1
H – D		1
D-15 RGB Input(VGA)		1
YUV/YPbPR		1(3xBNC)
S-(YC)		1(2xBNC)
Composite Video Input/(AV)		3(3xBNC)
Composite Video Output		2(2xBNC)
AUDIO INPUT		1
Split Screen		Support Picture in Picture(PIP/POP/PAP)
Power
Power Supply		AC100V~240V
Maximum Power Consumption		250W
Standby Power Consumption		<=3W
Temperature
Working Temperature		0°C~50°C
Working Humidity		20%-80%
Video Wall Controller(Built-in each Screen)
Model No.	US-P816A
Input	CVBS	*3BNC inputs, support PAL/NTSC all formats, 2BNC loop outputs*
	VGA	*1D15 port, support SVGA/XGA/WXGA**
	YPbPr/YCbCr	*1 YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I, H- H – DTV**
	Y/C	*2BNC inputs, support PAL/NTSC all formats**
Output	LVDS	*Support signal or double LVDS output, and WUXGA (19201080) display**
Operate mode	Panel key operation(needs customization)
	Standard RS232 port( provide free control software)
	Infrared Remote Control Operation
Engineering software	Customized
Working temperature	0~70 °C
working humidity	5~95 %RH
AC voltage power supply	100-240V/50, 60Hz
power consumption	Max 300W,according to different Screen models
Weight	About 3.5KG

Video

Additional information

Weight	30 kg
Screen Size	46'' , 49'' , 55'' , 65''
Pixel Pitch	P3 , P5 , P6
