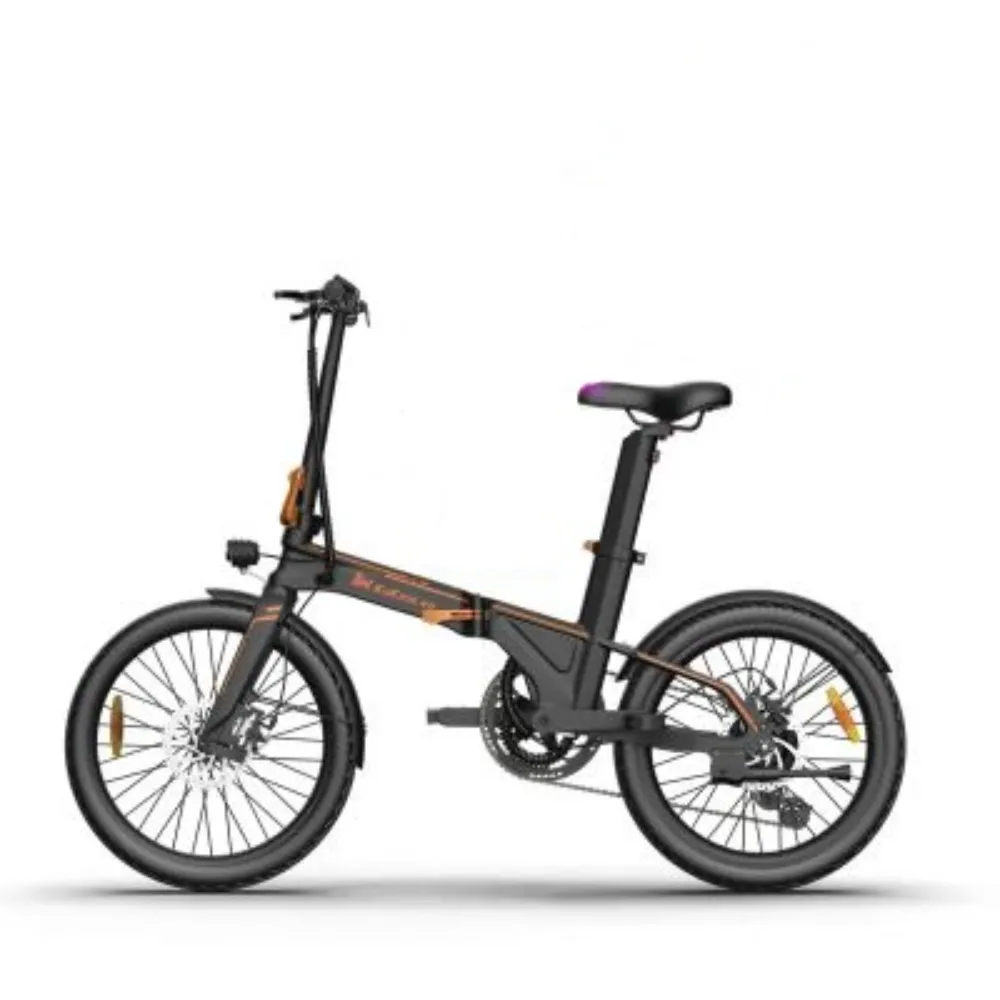

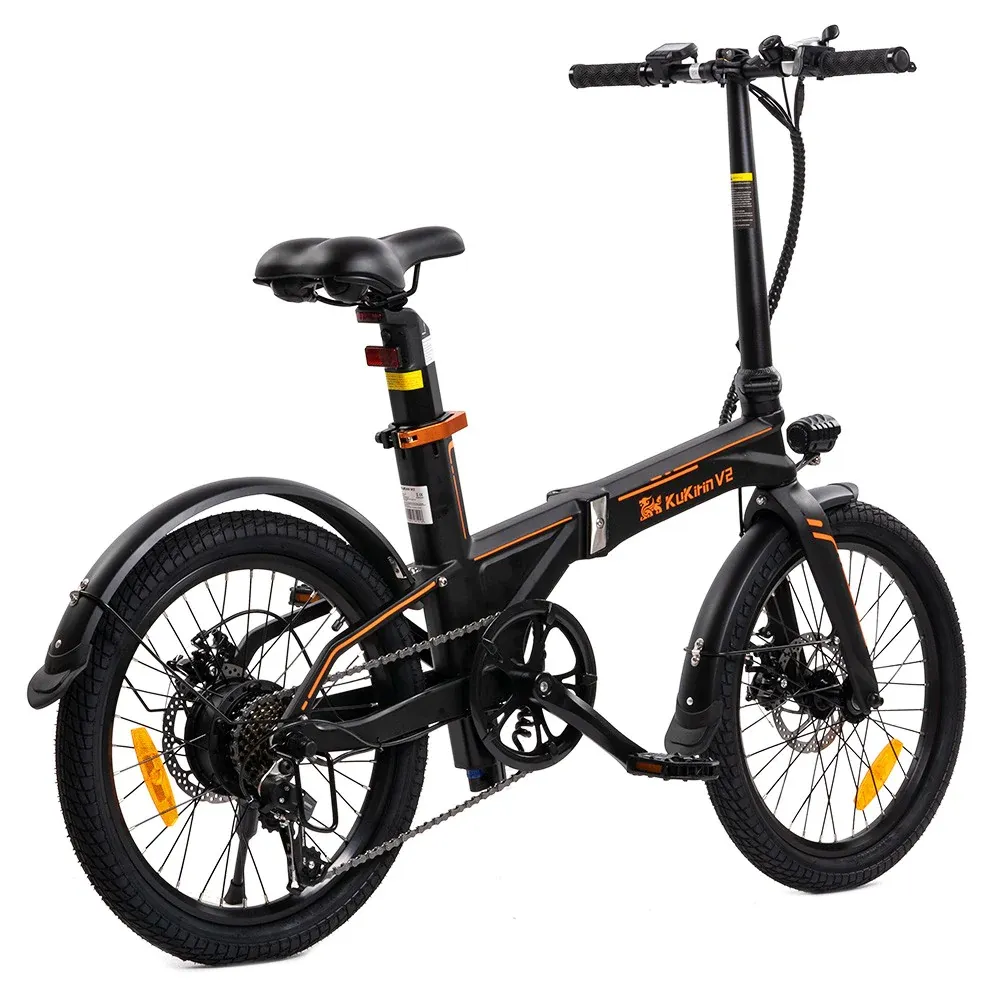

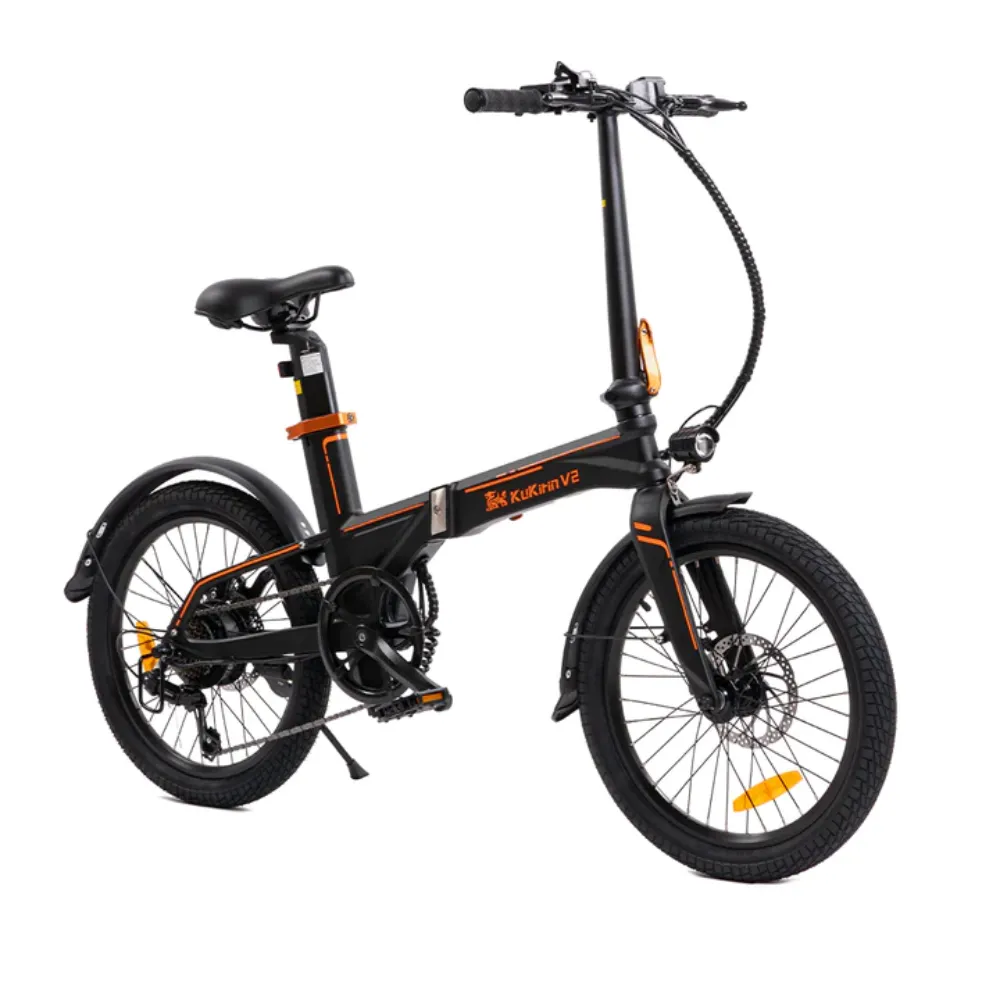

Kukirin V2 Foldable Electric Bike with Fat Tires

Kukirin V2 Foldable Electric Bike with Fat Tires – Specifications:

• Model: KuKirin V2
• Packing Size: 1230*270*625mm
• Weight: 18.85kg
• Maxium load: 120kg
• Expand size: 1475*542*1090MM

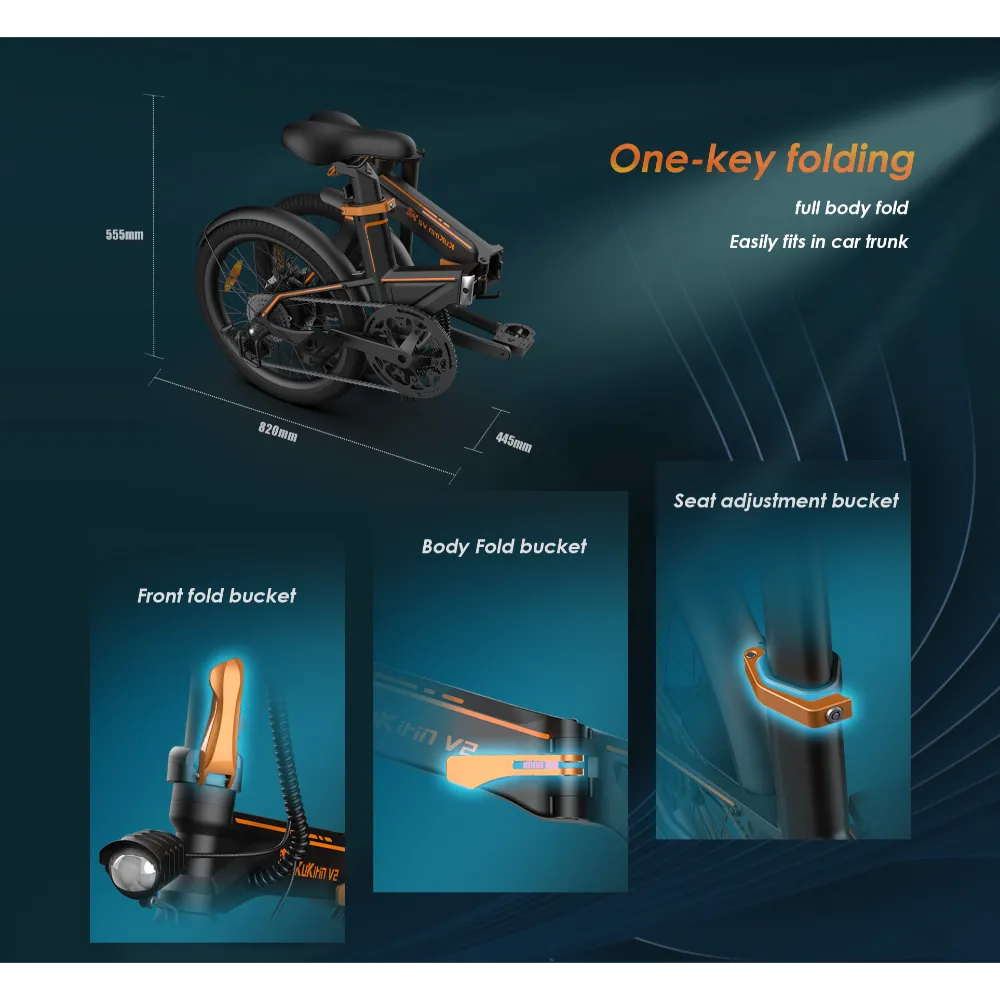

• Fold size: 1475*240*685MM
• Handlebar length: 130mm
• bar length: 540mm
• chassis height: 120mm
• Pedal size: Length：10mm Width：70mm
• Pedal put feet size: Length：10mm Width：70mm
• Speed: 1st gear 15km/H, 2nd gear 20km/H, 3rd gear 25km/H
• Single mileage: 30km Full power until stop
• Assistance mileage: 45km Full power until stop
• Climbing ability: 15° Load 65KG
• Brake system: Mechanical disc brake (disc brake，e-brake，other)
• Brake distance: 7-10M
• Waterproof level: IP54
• Frame material: Magnesium alloy（Aluminum alloy, magnesium alloy, iron frame）
• Motor Voltage: 36V
• Motor type: Spoke gear high-speed motor（integrated, split, other in-wheel motors)
• Rated power: 250W
• Instantaneous maximum power: 430W
• Maximum speed: 280±10 (rmp/min)
• Maximum output torque: ≥35 N.m (.N.M/S)
• Battery: Power lithium battery
• Capacity-Single cell capacity: 2500mAh
• Battery capacity: 7.5ah
• Voltage: 36v
• Charging time: 5h-6h
• Battery protect system: Charging power failure protection
• LED Headlight: Number of lamp beads: 1
• Power(Watt): 7-8W
• Irradiation angle: 45 degree
• Irradiation width angle（°）:80 Maximum area normally projected onto the ground（㎡）
• Charger parameter Input voltage: AC100-240V, Input current: 2A, Output voltage: 42V, Ouput current: 1.5A
• Inner tube Size: 20×2.125（Inch）
• Type: straight mouth/90°bent mouth
• Optimum Tire Pressure: 35-40 PSI
• Tire Size: 20×2.125（Inch）
• Type: pneumatic tire Off road/Honeycombe/Tubeless/pneumatic tires: (road tires, off-road tires)
• Optimum Tire Pressure: 35-40 PSI
• Material: Rubber
• Seat cushion Lowest 730mm (Height from ground MM）
• Highest: 1000mm (Height from ground MM）
• Disc brake: Brand KuKirin, Diameter 160 mm
• Thread inner diameter M5mm

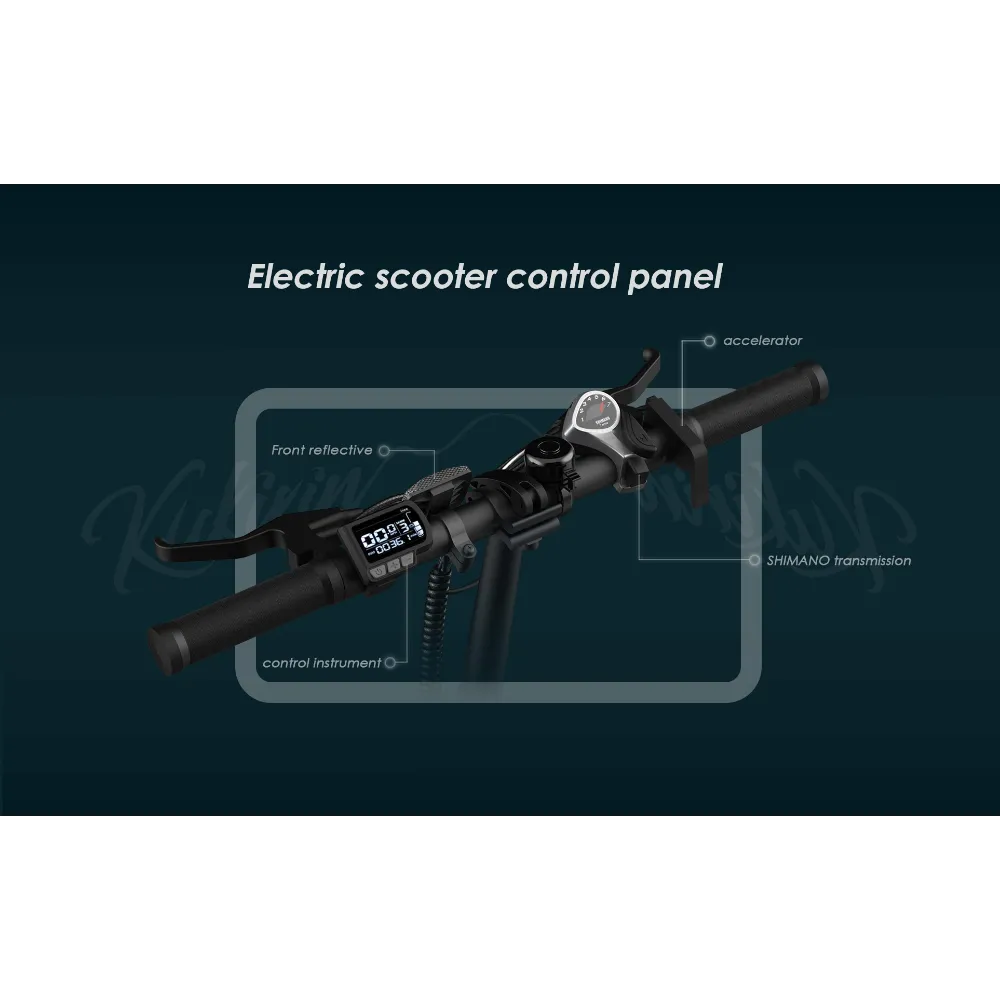

• LCD instrument display Size: Length:60mm Width：46mm
• Display content: Speed display、% assistance display、malfunction indicator、Total mileage、accumulated mileage、Cruise control、brake indicator、headlight indicator
• Function setting: Switch control 、Front and rear light switch control, 6Km/h jog control, real-time cruise control, wheel diameter setting, 5-speed assist ratio setting, maximum speed setting, idle automatic sleep time setting
• Package list: Seat，front fender，rear fender，charger，pedal，tool bag，User manual，front wheel，quick release handlebar
