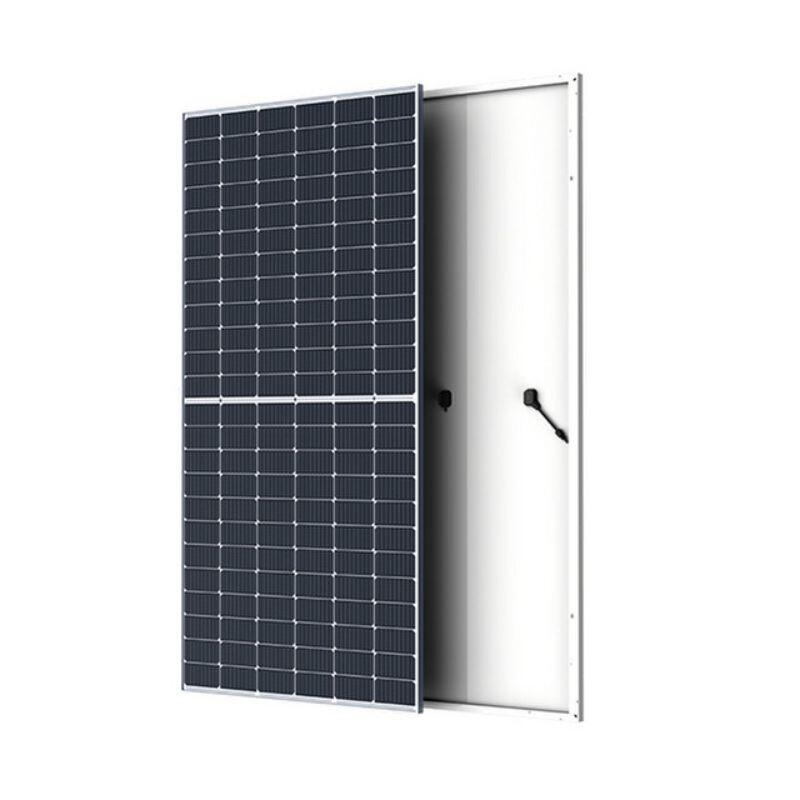

TRINA Solar Panel 450 Watt TallmaxM TSM-450 DE17M(II)

Trina TallmaxM TSM-450 DE17M(II) solar panel

Framed, 144 cells Layout, 450 Wp nominal output, Monocrystalline PV module

Increased Energy Generation with Half-cut Cell Technology

The Tallmax M module is one of the industry’s most trusted modules. With stronger resistance against hotspots and excessive temperature, half-cut cells can improve module reliability. The application of multi-busbar cells results in more uniform loads to prevent stress, resulting in better performance even in case of slight cracking.

Higher Return on Investment thanks to Higher Power Output

Tallmax M module with the highest power up to 450W can remarkably reduce the number of modules employed in a power station, thus lowering corresponding cost of supports, cables, construction and land, improving the return on investment.

High Power

Up to 450W front power and 20.6% module e‑ffciency with half-cut and MBB (Multi Busbar) technology bringing more BOS savings

Lower resistance of half-cut and good reflection effect of MBB ensure high power

High reliability

Ensured PID resistance through cell process and module material control

Resistant to salt, acid and ammonia

Mechanical performance: Up to 5400 Pa positive load and 2400 Pa negative load

High energy generation

Excellent IAM and low light performance validated by 3rd party with cell process and module material optimization

Lower Temperature Coef‑fcient Pmax(-0.36%) and NMOT bring more energy leading to lower LCOE

Better anti-shading performance and lower operating temperature

Mechanical Data:

144 monocrystalline cells (6 × 24)

Module Dimensions: 2102 ×1040 × 35 mm

Frame: 35 mm Anodized Aluminium Alloy

Weight: 24,0 kg

Modules per packing box: 30 pieces

Glass: 3.2 mm, High Transmission, AR Coated Heat Strengthened Glass

Encapsulant Material: EVA

Backsheet: White

J-Box: IP68 rated

Cables: Photovoltaic Technology Cable 4.0mm2, L-140cm (for landscape layout)

MC4 EVO2 connectors

Warranty: 12-year manufacturer guarantee; 25-year linear output warranty with 0,55% annual output reduction

Electrical data and more information:

Trina TallmaxM TSM-DE17M(II) module Datasheet

Global Limited Warranty for Trina Solar crystalline solar PV modules
