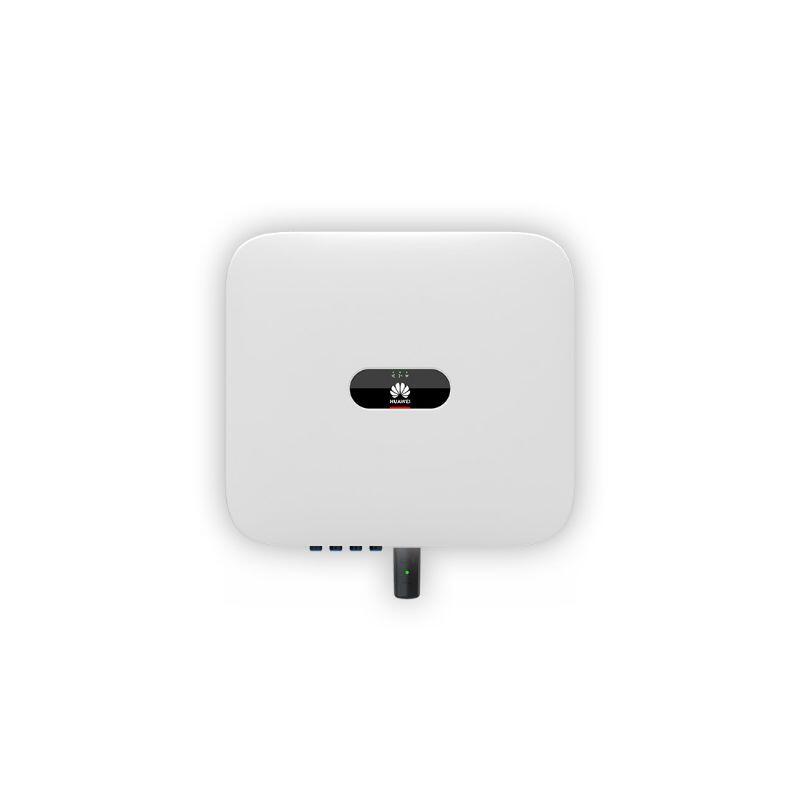

General Specifications of 5KTL-M1- HC (High Current) :
3-phase inverter with 5,500VA power
2 independent MPP trackers
1 battery connection (Plug & Play) for LUNA2000 ESS 5-15kWh
Efficiency up to 98.4%
Compatible with module optimizer SUN2000-450W-P
Communication via WLAN / Ethernet & 4G/LTE*
Free system monitoring with FusionSolar
RS485 for Smart Power Sensor & LUNA2000 ESS 5-15kWh
Integrated AC and DC overvoltage protection TYPE II
Integrated PID recovery
Convection cooling
Protection class IP65
Smart PV string inverter:
High efficiency inverter topology, Max. Efficiency 98.6%
Can be combined with Huawei Smart PV Optimizer SUN2000-450W-P, enables more modules on rooftop
Up to 30% higher yields contributed by optimizing each panel performance
Hybrid inverter with battery input
Integrated battery interface for future quick battery connection without extra device or retrofit cost
Ripple control receiver interface
AI-based arc detection AFCI
Communication:
– Smart dongle-WLAN-FE (integrated)
Smart dongle-4G (optional)
Features:
Recommended max. PV input power: 7500 Wp
Max. input voltage: 1100 V
Number of MPP trackers / Input number per MPP tracker: 2 / 1
Battery Input operating voltage range: 600 V – 980 V
Battery Input Max. operating current: 16 A
Rated output power: 5 kW
Rated output voltage: 220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W / N+PE
Max. output current: 8,5 A
DC and AC surge protection: Surge arresters SPD2
Degree of protection: IP65
Weight (incl. mounting bracket): 17 kg
Dimension (incl. mounting bracket): 525 x 470 x 146,5 mm
Included in delivery
PV Connector
Battery Connector
AC Connector
Signal Cable Connector
Bracket
WLAN-FE-Dongle
