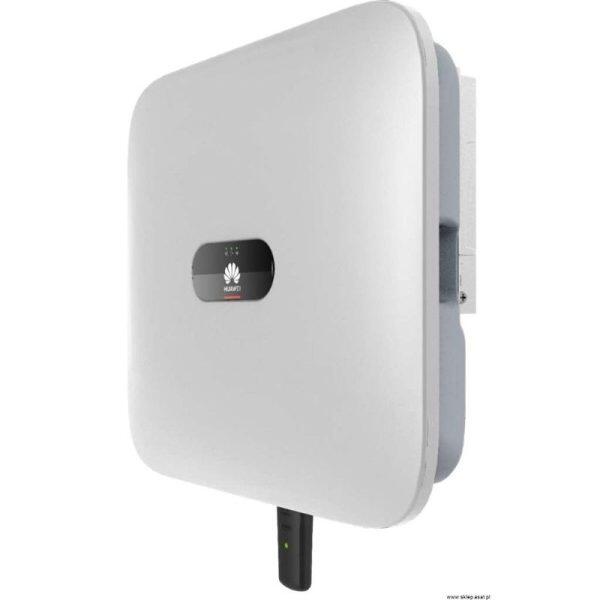

Huawei Single-Phase Solar Inverter SUN2000-3KTL-L1 3.000W

Huawei SUN2000-3KTL-L1 – General Specifications

Operating temperature range: -25 ~ +60 °C
Operating relative humidity: 0 % RH~100 % RH
Operating altitude: 0 – 4,000 m (derating > 2,000 m)
Cooling: Natural convection
Display: Status LED’s
Communication: RS485, WLAN, Ethernet*, 4G/3G/2G*
Weight (incl. mounting bracket): 12 Kg
Dimensions (incl. mounting bracket): 365 x 365 x 156 mm
Protection class: IP65

Huawei SUN2000-3KTL-L1 – Input DC

Recommended maximum PV power1: 4.500 Wp
Max. Input voltage2: 600 V
Starting voltage : 100 V
Full MPPT voltage range2: 90 V ~ 560 V (1)
Rated input voltage : 360 V
Max. Input current per MPPT: 12.5 A
Max. Short circuit current: 18 A
Number of MPP trackers: 2
Max. Number of inputs: 2

Huawei SUN2000-3KTL-L1 – Output AC

Mains connection: Single-phase
Rated power: 3.000 W
Max. Apparent power: 3,300 VA
Rated output voltage: 220 V / 230 V / 240 V
AC – mains frequency: 50 Hz / 60 Hz
Max. Output current: 15 A
Adjustable power factor: 0.8 cap. … 0.8 ind.
Distortion factor (THD): ≤ 3%

Huawei SUN2000-3KTL-L1 – Efficiency

Max. Efficiency: 98.3 %
European efficiency: 97.3 %

Huawei SUN2000-3KTL-L1 – Protection devices

DC load break switch: Yes
DC reverse polarity protection: Yes
AC overcurrent protection: Yes
AC short circuit protection: Yes
Overheat protection: Yes
Arc fault protection: Yes
DC overvoltage protection4: Yes
AC overvoltage protection4: Yes
DC insulation monitoring : Yes
Fault current monitoring : Yes

Huawei SUN2000-3KTL-L1 – Battery Compatibility

Compatible battery: LG Chem RESU 7H_R / 10H_R
Voltage range: 350 ~ 450 Vdc
Max. Current: 10 A
Max. Discharge power: 3,300 W

Compatible battery: HUAWEI Smart ESS battery 5 kWh – 30 kWh 1
Operating voltage range: 350 ~ 560 VDC
Max. Operating current: 15 A
Max. Charging power3: 5.000 W
Max. Discharge power: 3,300 W

Huawei SUN2000-3KTL-L1 – Standards and Security

EN/IEC 62109-1, EN/IEC 62109-2

Huawei SUN2000-3KTL-L1 – Power supply conditions

G98, G99, EN 50549-1, CEI 0-21, VDE-AR-N-4105, AS 4777.2, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, IEC61727,
IEC62116

Huawei SUN2000-3KTL-L1 – Optimizer Compatibility

DC MBUS compatible optimizer: SUN2000-450W-P

Huawei SUN2000-3KTL-L1 – included in delivery

PV Connectors
Battery Connectors
AC connectors
Signal cable connector
Antenna
Bracket

Huawei SUN2000-3KTL-L1 – Notes and explanations

1 The maximum PV input power of the inverter is 10000 Wp when long strings are designed and fully connected to the SUN2000-450W-P power optimizers.

2 The maximum upper limit for input voltage and operating voltage is reduced to 495 V when the inverter is connected and operates with the LG battery .

3 2500 W @ 5kWh HUAWEI ESS Battery

4 compatible with protection type TYPE II according to EN / IEC 61643-11

* via WLAN-FE dongle / 4G dongle (optional)
