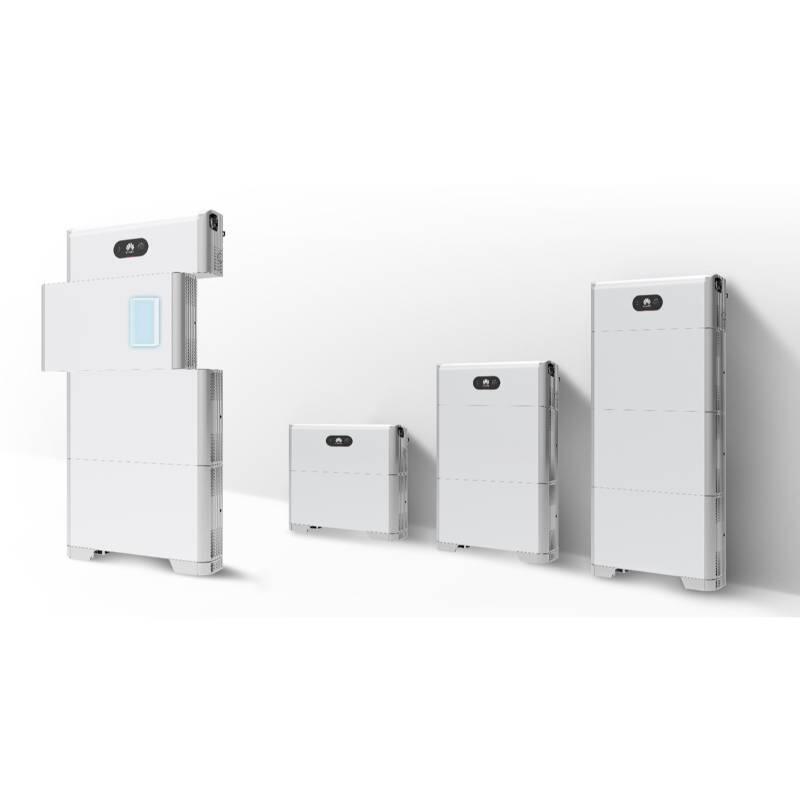

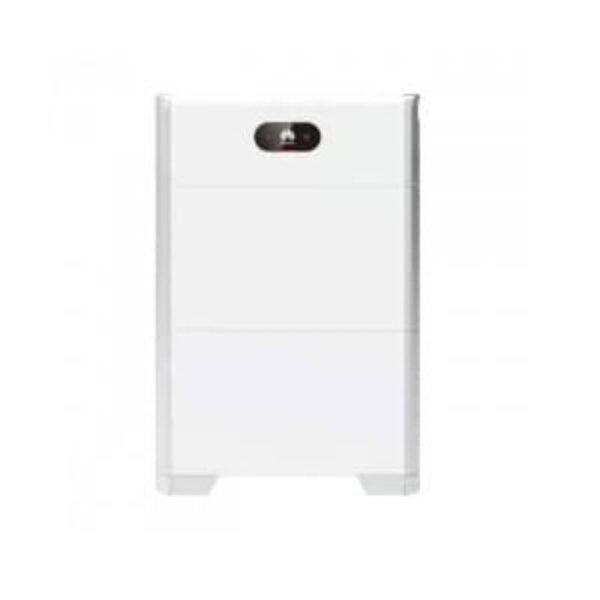

LUNA2000 battery system specifications
| Battery system model | LUNA2000-5-S0 | LUNA2000-10-S0 | LUNA2000-15-S0 |
| Capacitya | 5 kWh | 10 kWh | 15 kWh |
| Battery Type | Lithium iron phosphate (LiFe battery) | ||
| Output (DC) | |||
| Rated voltage | 385 V | ||
| Maximum input/output voltage | 560 V | ||
| Voltage range | 350 V–560 V | ||
| Input/Output Rated Power | 1.5 kW | 3 kW | 4.5 kW |
| Maximum input/output current | 4.5 A | 9 A | 13.5 A |
| Usage Time | |||
| Rated power usage time | (self-supporting output) 120 points
(Grid-tied output) 60 points |
(self-supporting output) 240 points
(Grid-tied output) 120 points |
(self-supporting output) 360 points
(Grid-tied output) 180 points |
| Display·Communications | |||
| Display | SOC Charging status indicator (LED), FusionSolar APP | ||
| Communications | RS485, CAN | ||
| Other | |||
| Dimensions (W x H x D) | 670 mm x 600 mm x 150 mm | 670 mm x 960 x mm x 150 mm | 670 mm x 1320 mm x 150 mm |
| Weight of the battery (Including Floor Mounting Base) | 63.8 kg | 113.8 kg | 163.8 kg |
| DCDC Dimensions | 670 mm x 240 mm x 150 mm | ||
| Weight of DCDC | 12 kg | ||
| Battery module Dimensions | 670 mm x 360 mm x 150 mm | ||
| Weight of the battery module | 50 kg | ||
| Service life | 20 years | ||
| Warranty | 10 years (free) 15 years (paid) | ||
| Charge/discharge cycle | 15 years (charge/discharge cycle test) | ||
| Cooling mode | Free cooling | ||
| IP rating | IP65 | ||
| Operating temperature | –20°C to +55°C | ||
| Maximum operating altitude | 5%–95% RH | ||
| Maximum operating altitude | 4000 m | ||
| Note a: The initial capacity (design capacity) of the battery modules is 5 kWh. The actual capacity may vary depending on the environment conditions, such as temperature, transportation conditions, and storage conditions. | |||

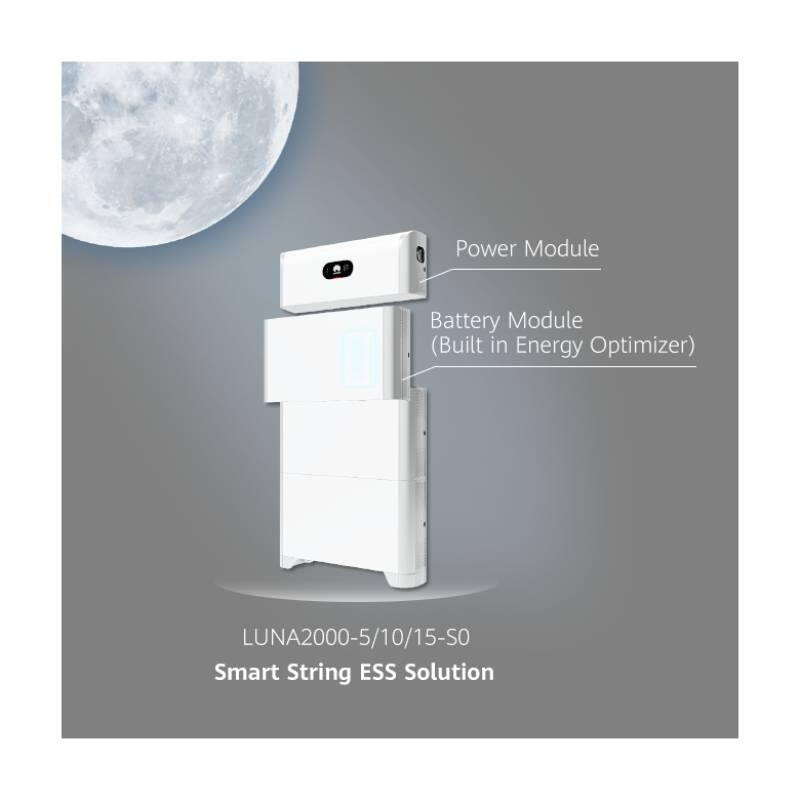

Package of battery system includes :

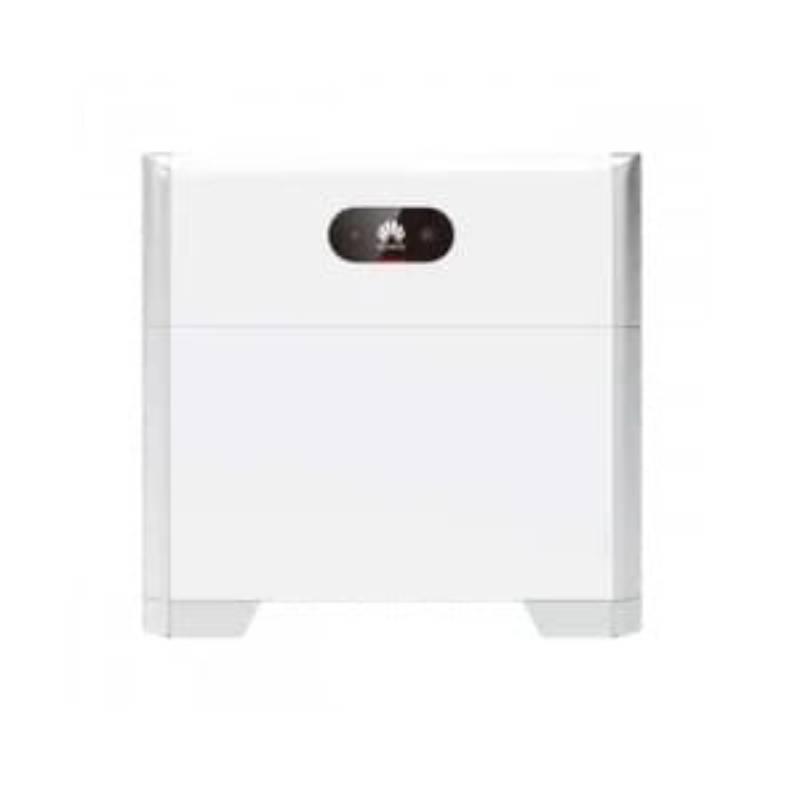

A) LUNA2000-5-S0 (5KW) :

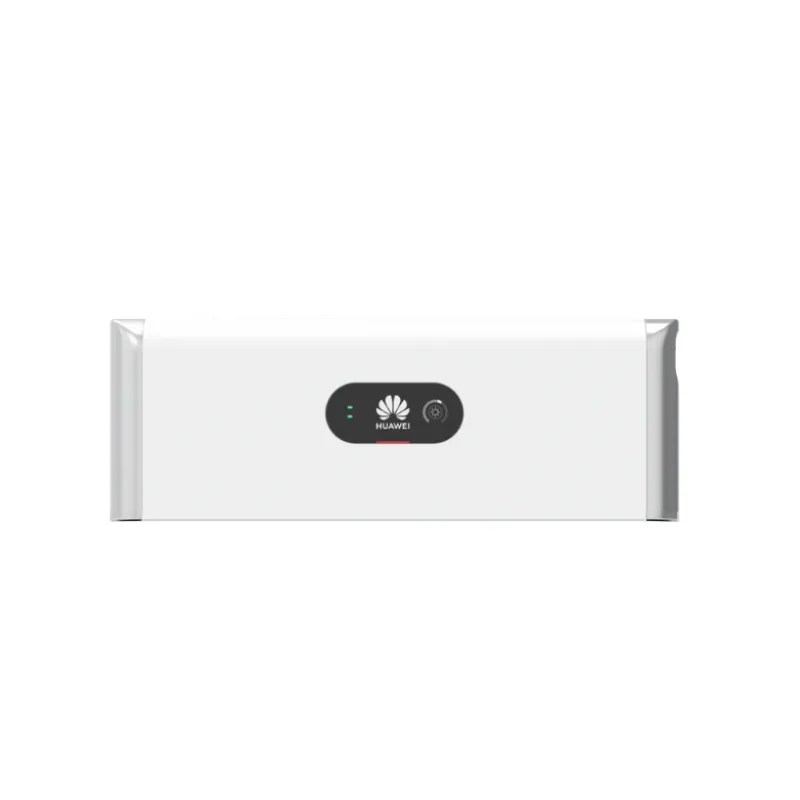

-1 pieces of Huawei 5kW LUNA2000-5KW-CO Power module

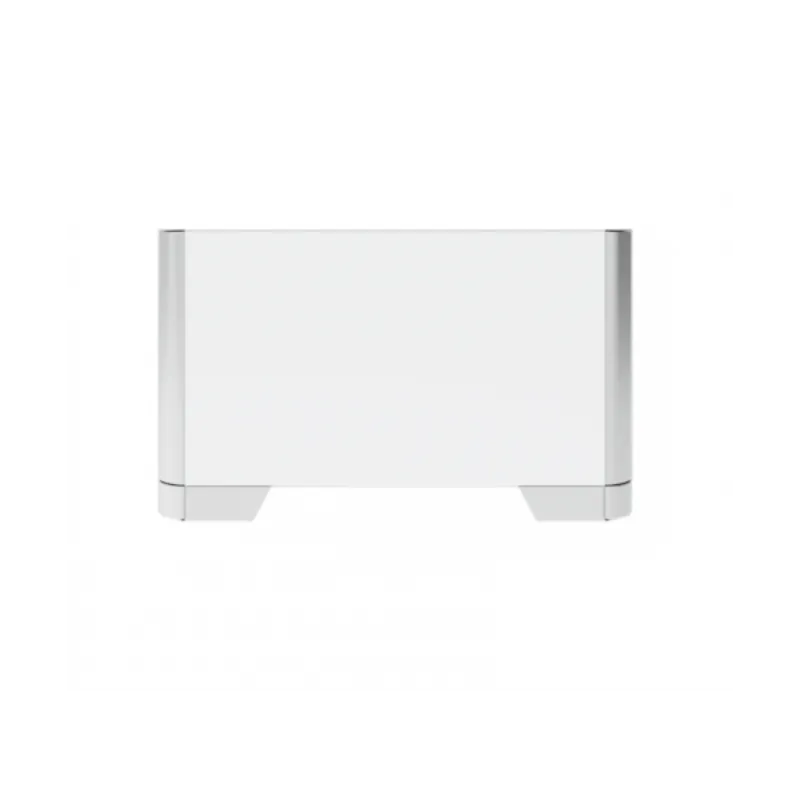

– 1 piece of Huawei 5kW LUNA2000-5-E0 – Battery module

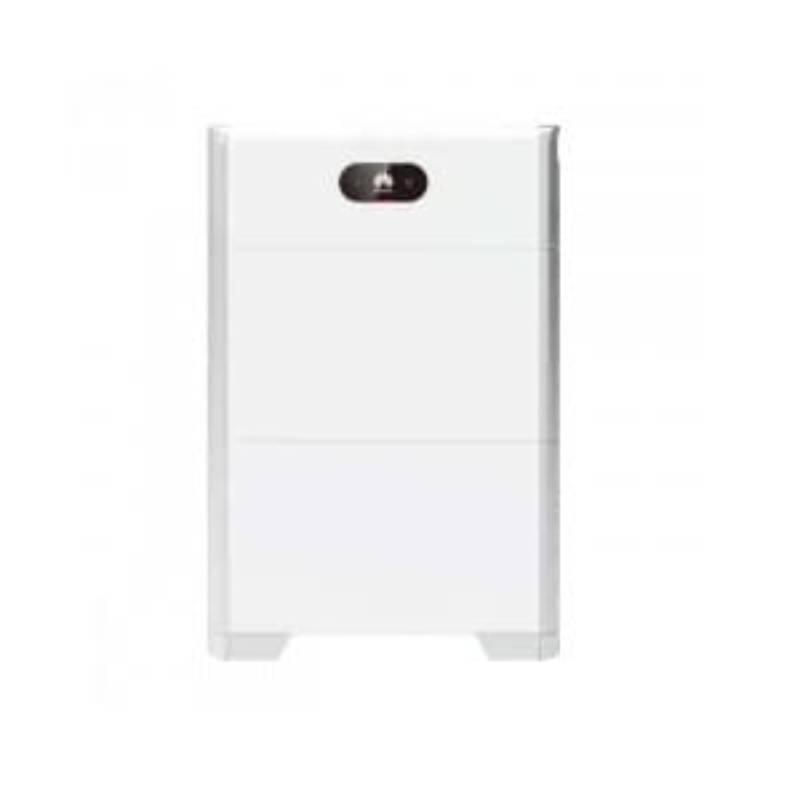

B) LUNA2000-10-S0 (10KW) :
-1 pieces of Huawei 5kW LUNA2000-5KW-CO Power module
– 2 pieces of Huawei 5kW LUNA2000-5-E0 – Battery modules

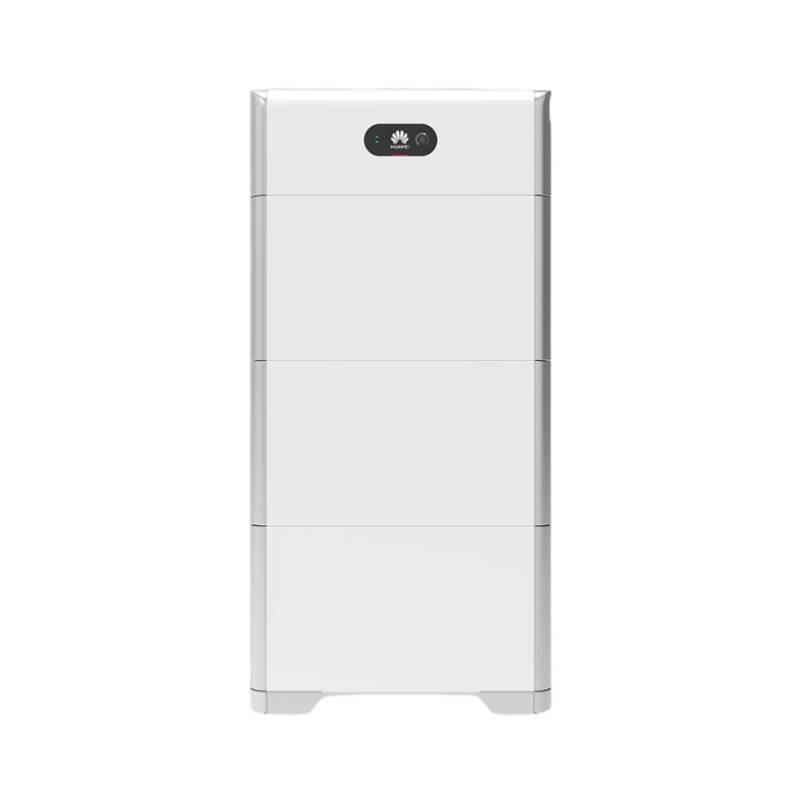

C) LUNA2000-15-S0 (15Kw) :
-1 pieces of Huawei 5kW LUNA2000-5KW-CO Power module
– 3 pieces of Huawei 5kW LUNA2000-5-E0 – Battery modules
