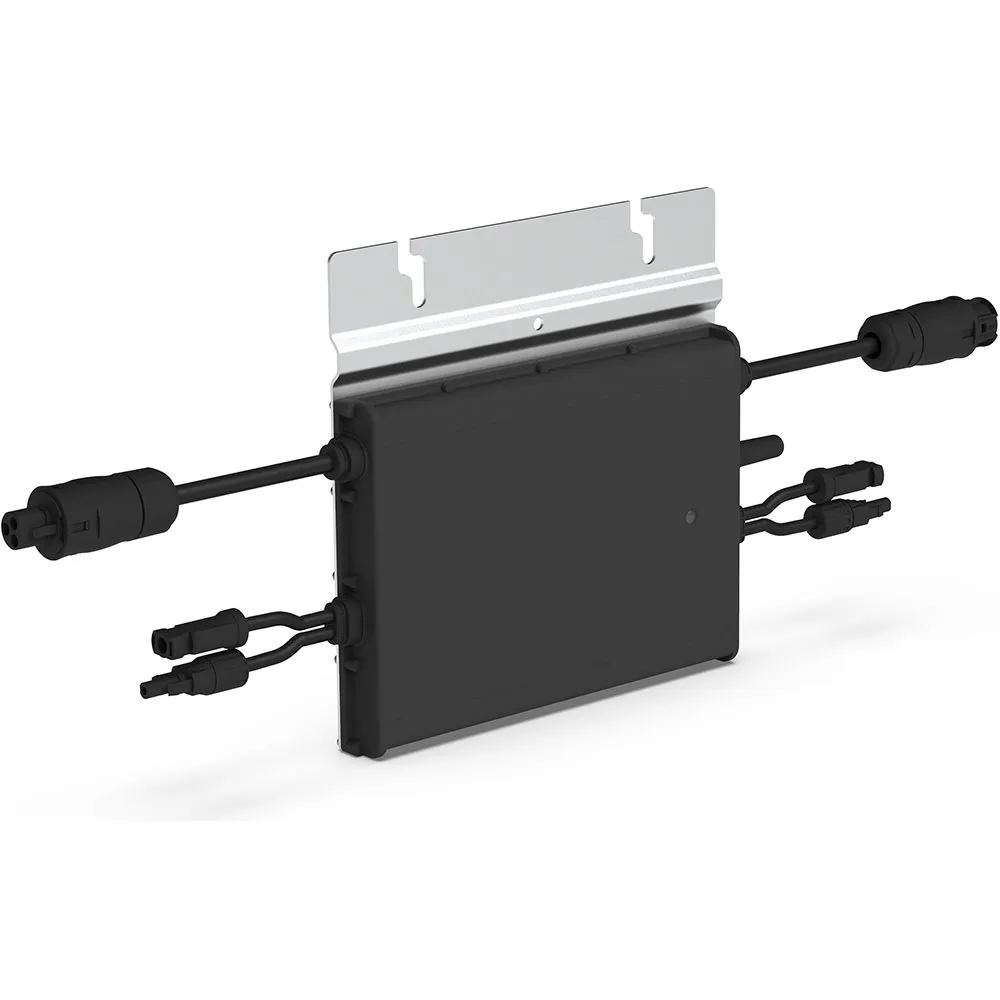

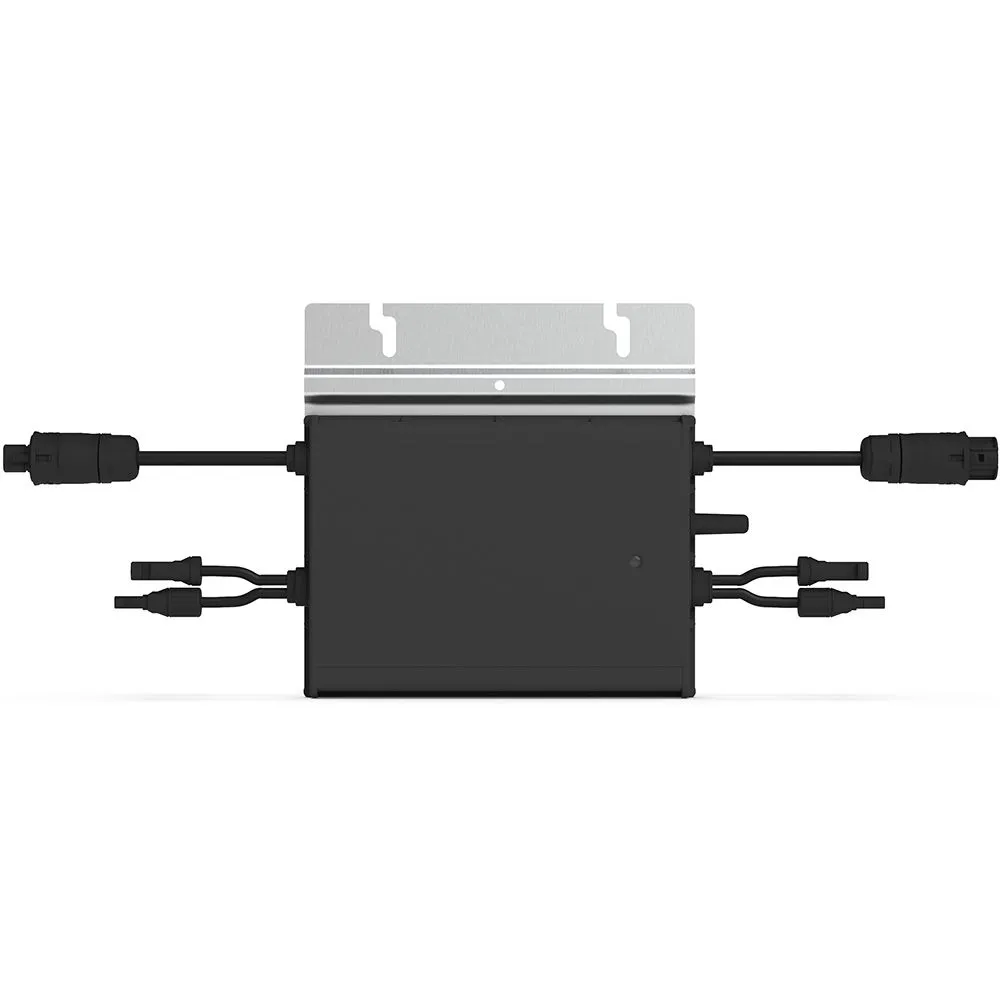

Name: HOYMILES HM-600/700/800 Solar Microinverter with Power of 600/700/800 Watt
SKU: NEWTECH4710180826513
Availability: InStock

Description

Model No.	HM-600A	HM-700A	HM-800A
Warranty
Product Warranty (Min)	25 Years	25 Years	25 Years
Input Data(DC)
Max. DC Power	0.76 kW	0.88 kW	0.96kW
Max. DC Voltage	60 V	60 V	60 V
Min. DC Voltage to Start Feed In	22 V	22 V	22 V
Max. DC Current	23 A	23 A	25 A
MPP(T) Voltage Range	29~48 V	33~48 V	34~48 V
Output Data (AC)
Max. AC Power	0.6 kW	0.7 kW	0.8 kW
Output AC Voltage Range	180~275 V	180~275 V	180~275 V
Nominal AC Voltage	220, 230, 240 V	220, 230, 240 V	220, 230, 240 V
Frequency Range	55-65 Hz	55-65 Hz	55-65 Hz
Frequency	60 Hz	60 Hz	60 Hz
Power Factor (cosθ)	0.8	0.8	0.8
Distortion (THD)	< 3 %	< 3 %	< 3 %
Max. Efficiency	96.7 %	96.7 %	96.7 %
General Data
Dimensions (H/W/D)	170x250x28 mm	170x250x28 mm	170x250x28 mm
Weight	3 kg	3 kg	3 kg
Operating Temperature	-40 ~ +65 ℃
Protection Class	IP67
Cooling	Natural
Protection Features
Protection Features	Surge Protection
