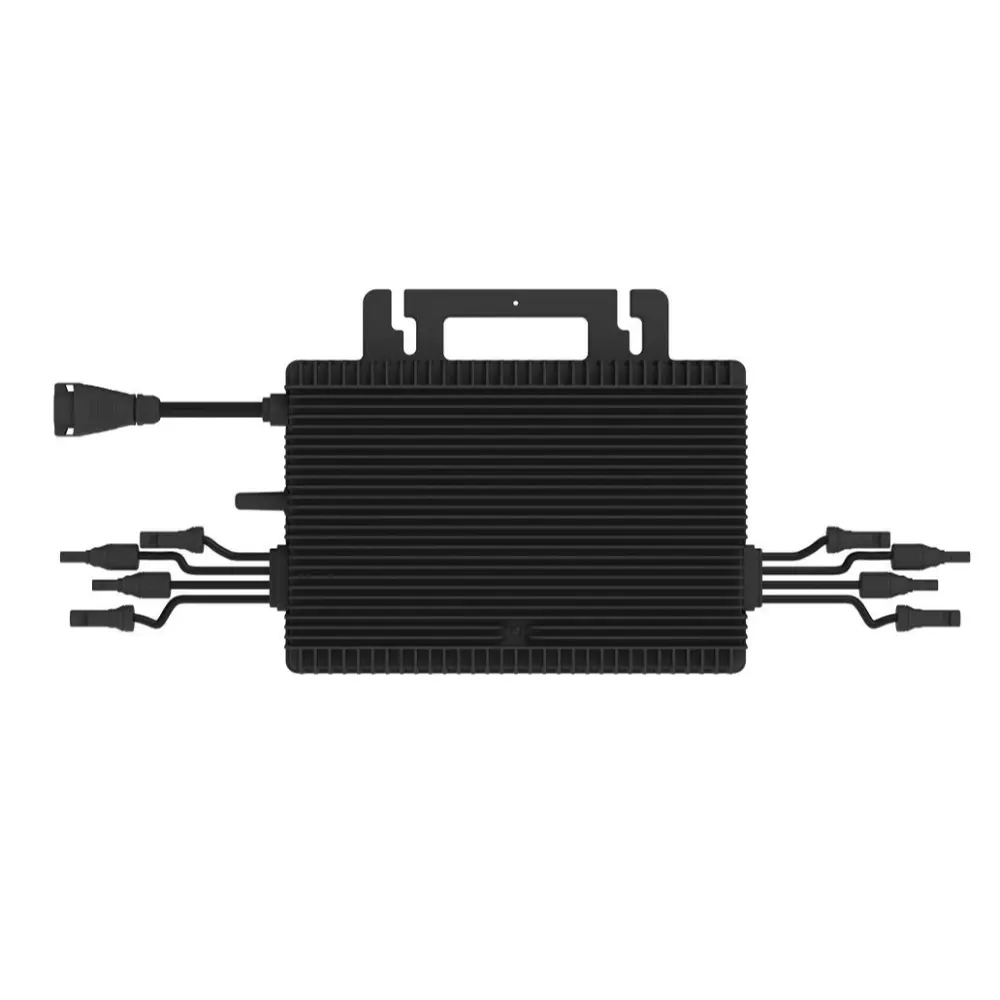

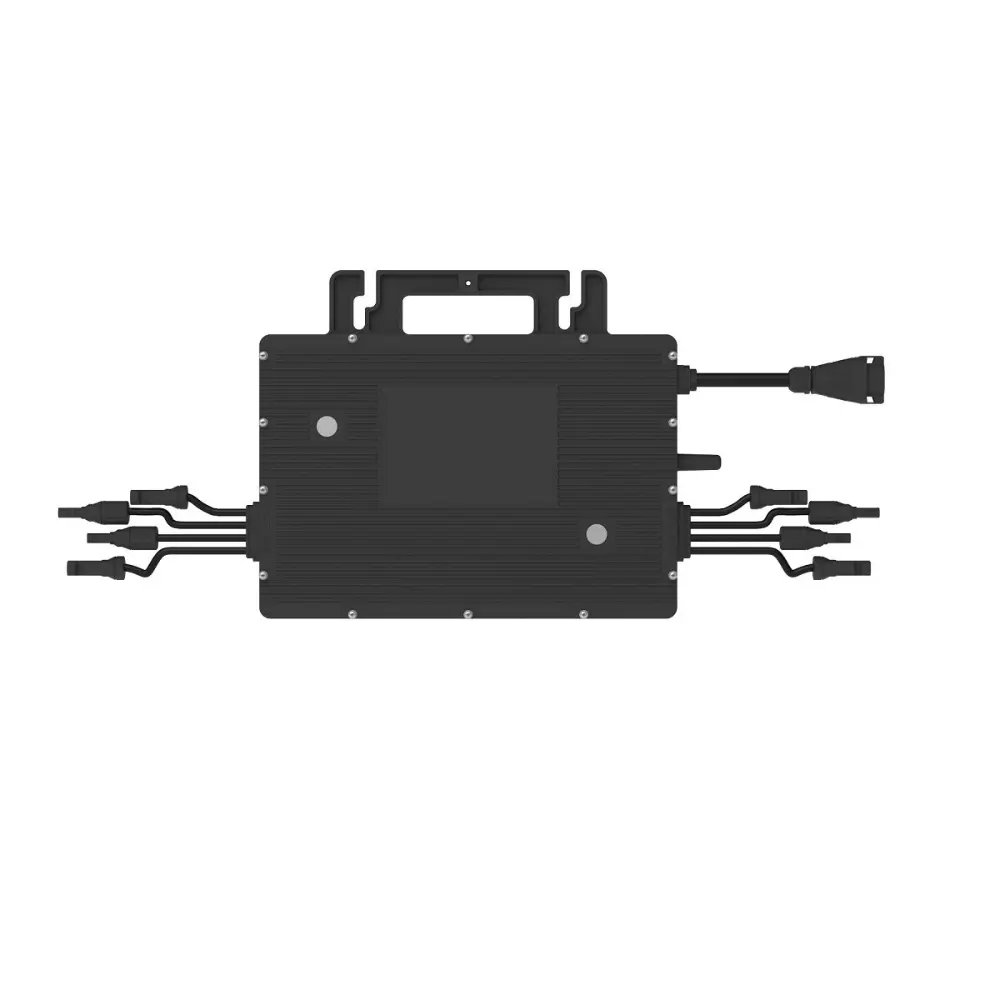

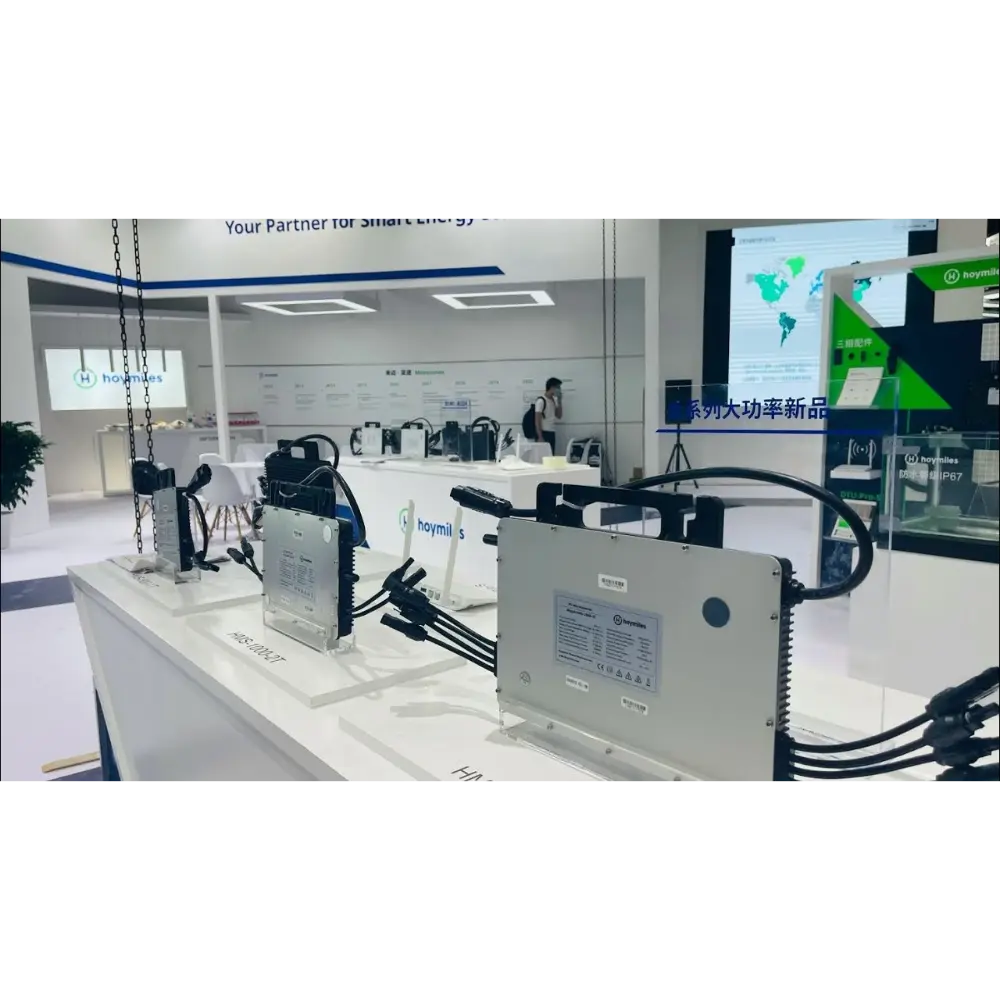

Hoymiles 2000-4T HMT Microinverter 3 Phase

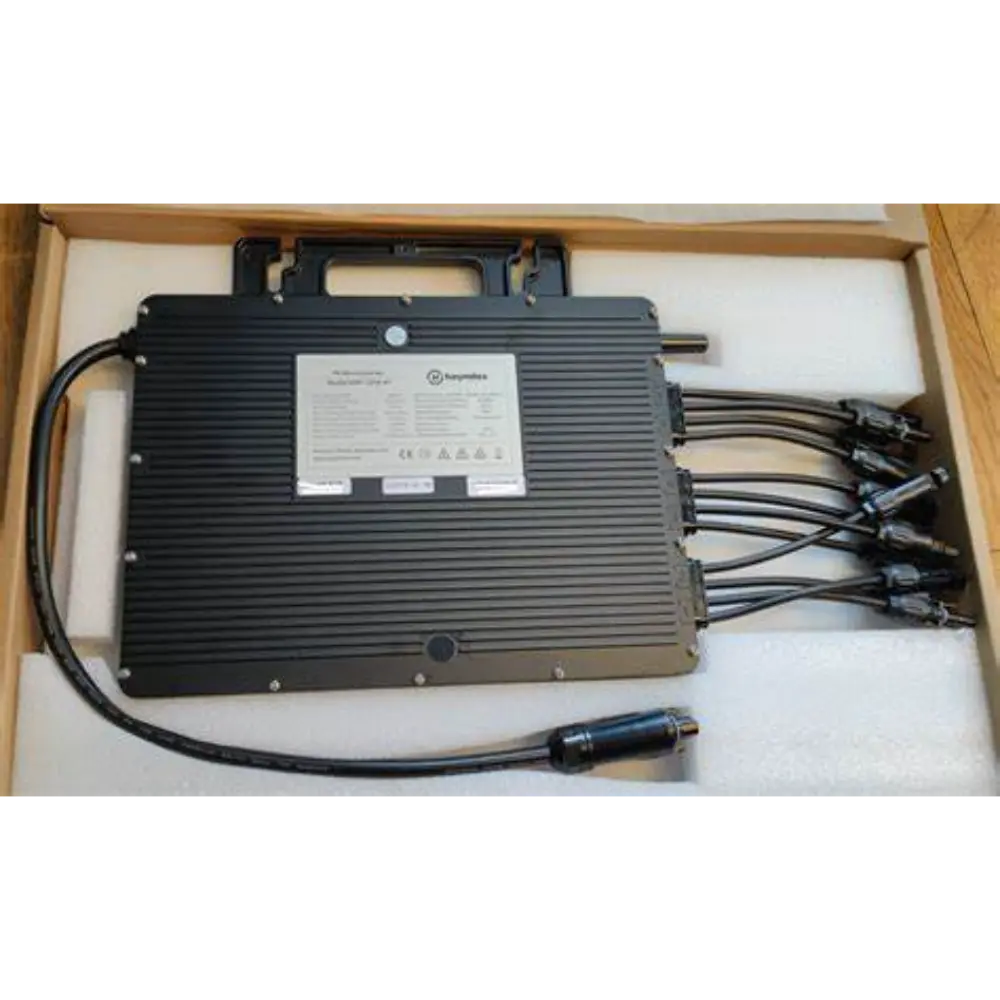

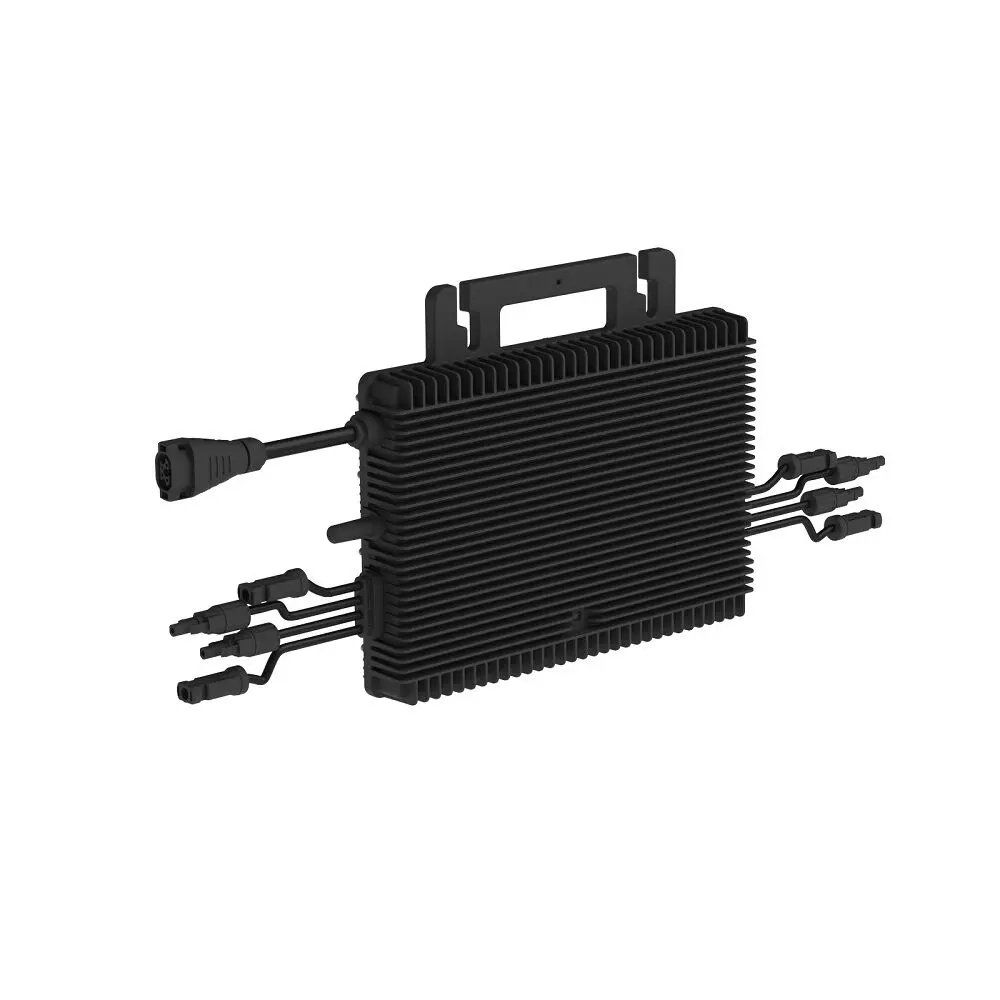

The Hoymiles 2000-4T HMT Microinverter 3 Phase accommodates high-powered PV modules, with a maximum output power of up to 2000 VA and a maximum DC input current of up to 16 A. The three-phase output is suitable for commercial and industrial applications. Its innovative 4-input design enables faster installation and lower costs, making it a cost-effective choice for solar energy systems.  It also features a Sub-1G wireless solution for stable communication in commercial and industrial settings and module-level monitoring via the S-Miles Cloud platform. The integrated grid protection relay ensures safety and reliability. The rapid shutdown compliance is safer for rooftop solar stations. The isolated transformer provides additional safety. It also features an HMT connection cable (12/10 AWG), an HMT Trunk Connector for easy installation, an HMT Extension Connector that adds flexibility, and an HMT cable terminal connector that ensures secure connections. The Hoymiles 2000-4T HMT Microinverter 3 Phase is a high-efficiency microinverter designed for commercial solar installations, offering robust performance and safety features, including advanced wireless communication.

SKU: 95326330

Original price was: 350.00 €.Current price is: 319.00 €. VAT Inc.

In stock

Stock Information


31 People watching this product now!
Description

Hoymiles HMT-2000-4T HMT Microinverter – Specifications:

  • Reactive Power Control CA Rule 21 Compliant
  • Compliant with U.S. NEC-2017 and NEC-2020 Article 690.12 and CEC-2021 Sec 64-218
  • High-powered micro-inverter with output power up to 2000 VA
  • Independent MPPT and monitoring ensure greater energy harvest and easier maintenance
  • With Reactive Power Control, compliant with EN 50549-1:2019, VDE-AR-N 4105:2018, VFR2019, etc.

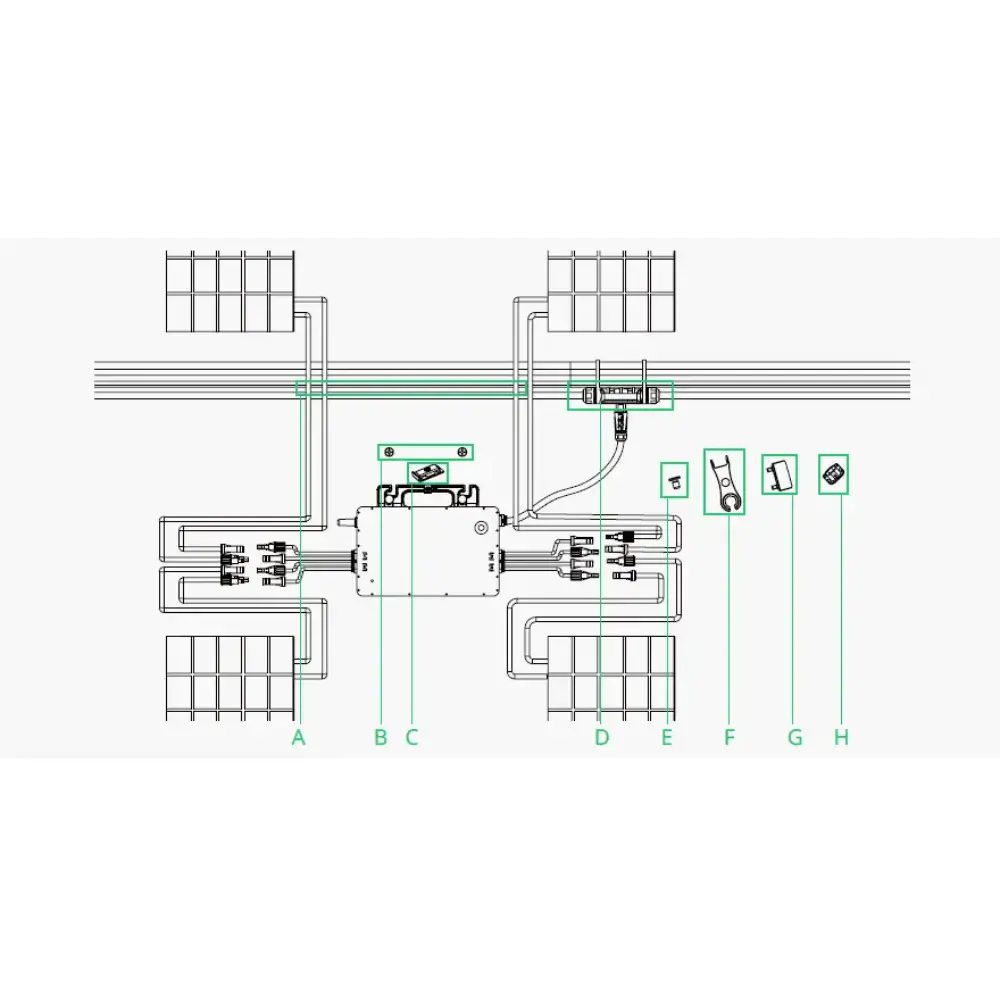

  • 4-in-1 design enables faster installation and comes with a lower cost

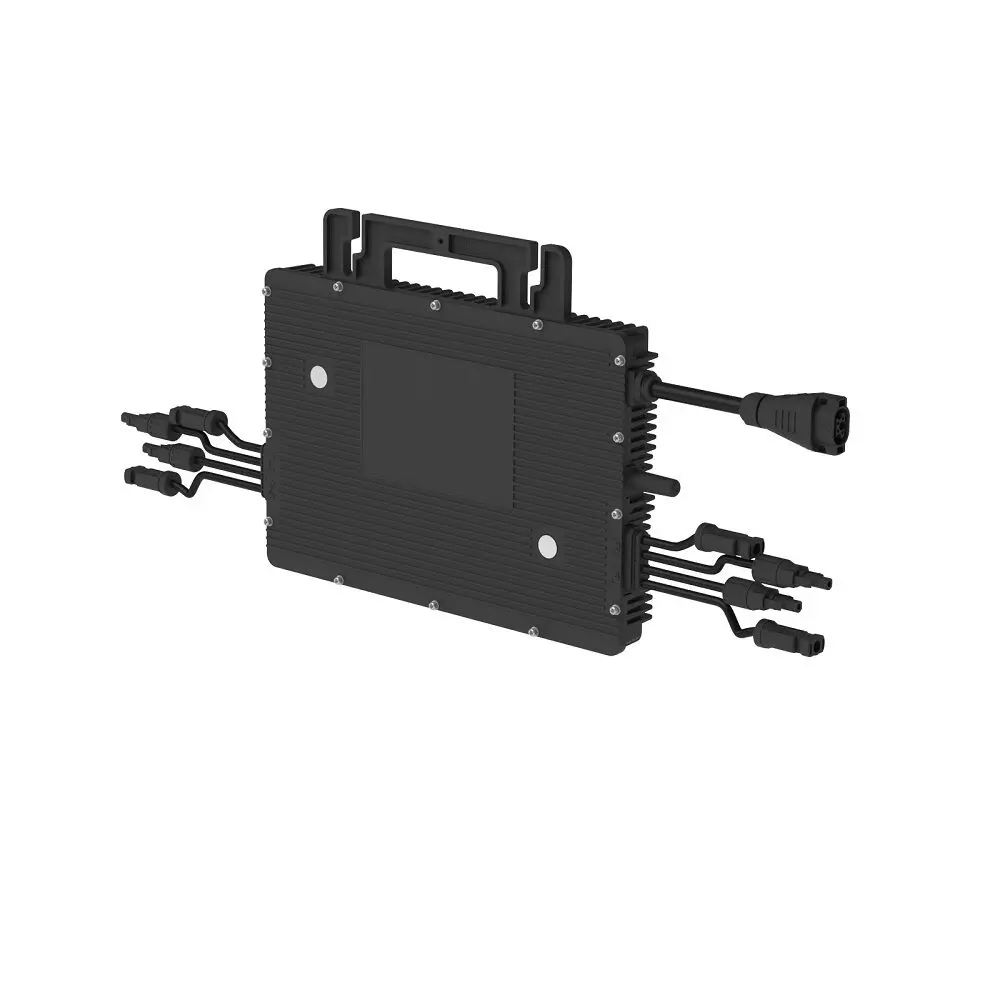

  • Safer for rooftop solar stations with rapid shutdown compliance and isolated transformer
  • Sub-1G wireless solution allows stable communication in commercial and industrial settings
  • Number of PV inputs: 4
  • Module Power range, typical(W): 400 to 670+
  • Maximum input voltage (V): 65
  • MPPT voltage range (V): 16-60
  • Maximum input current (A): 4×16
  • Peak output power (VA): 2000
  • Maximum continuous output power (VA): 1918
  • Maximum continuous output current (A): 7.99 | 9.22
  • Nominal output voltage(V): 240 | 208
  • Nominal output voltage range1(V): 240/211-264 | 208/183-228
  • Nominal frequency/range1 (Hz): 60 / 55-65
  • Maximum units per branch2 (10 AWG) 3 | 2
  • Dimensions: 33.10 x 21.79 x 4.06 cm
  • Weight: 5.56 kg
  • Cooling: Natural convection – no fans
  • Enclosure: Outdoor-IP67 NEMA 6
