General
Brand: DUOTTS
Type: Electric Bike
Model: N26

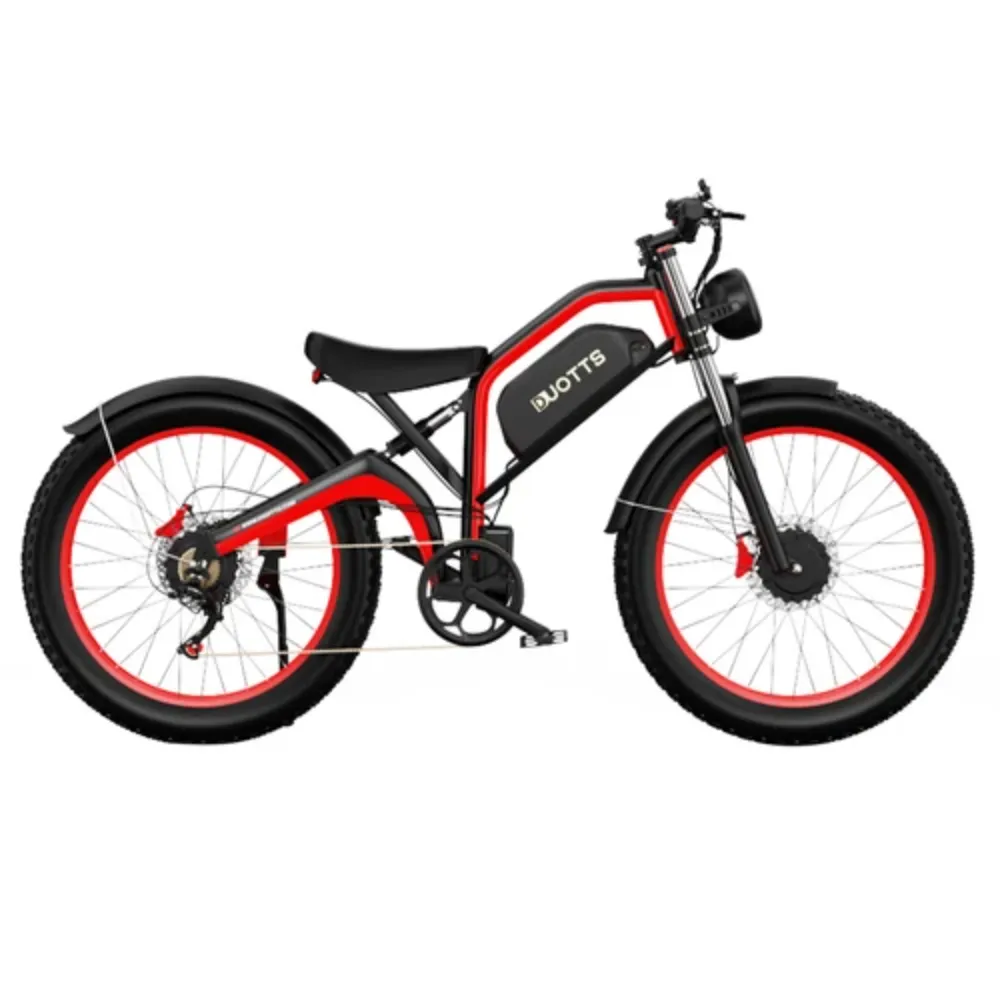

Color: Black
Specification
Frame: 26″ aluminum alloy frame
Waterproof grade: IPX4

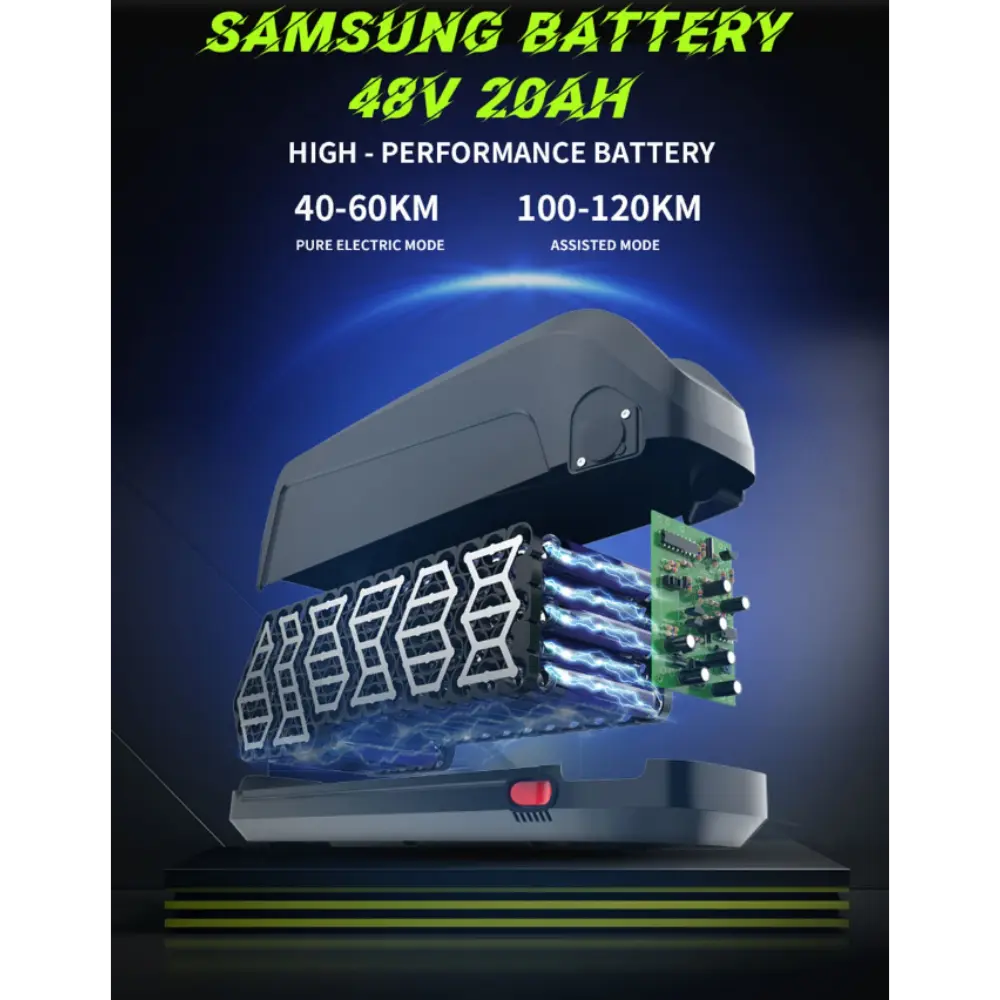

Battery: 48V 20Ah Samsung battery
Motor: 48V 750W*2 (Motor brand: PY)

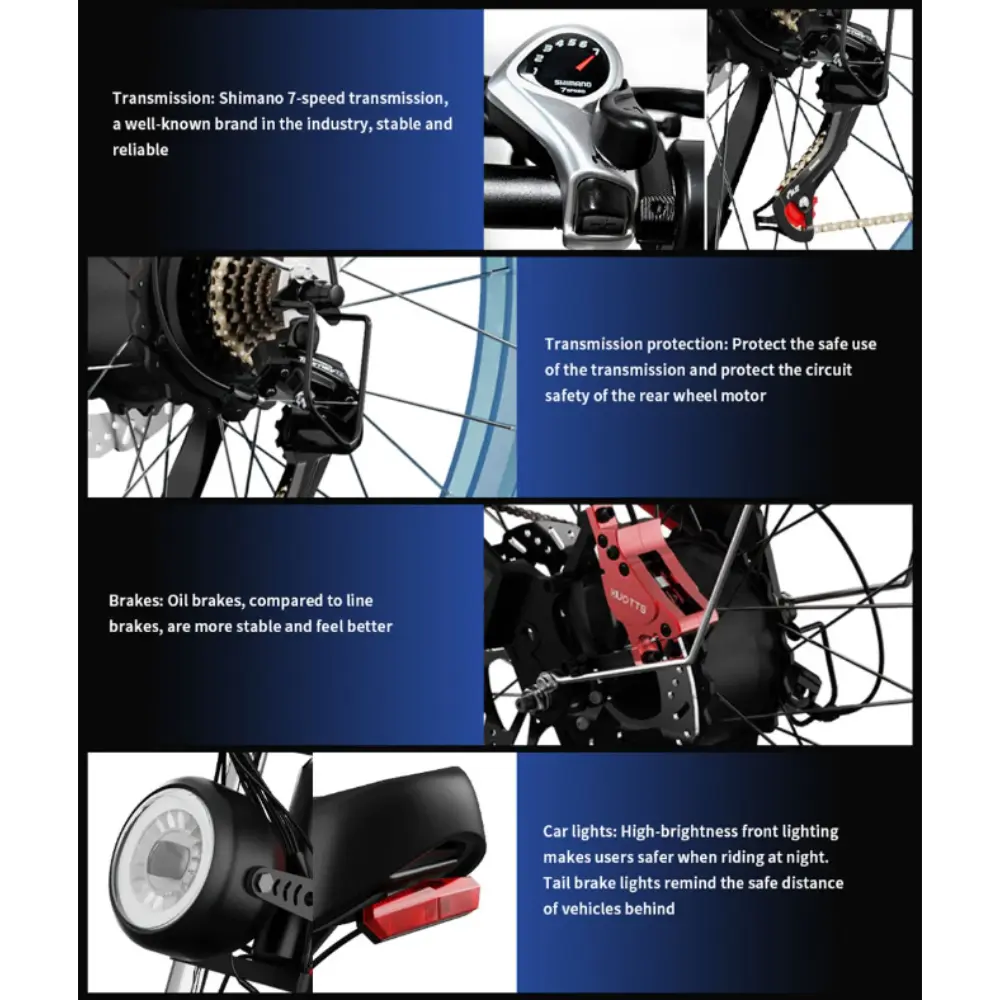

Speed: Shimano 7 speed

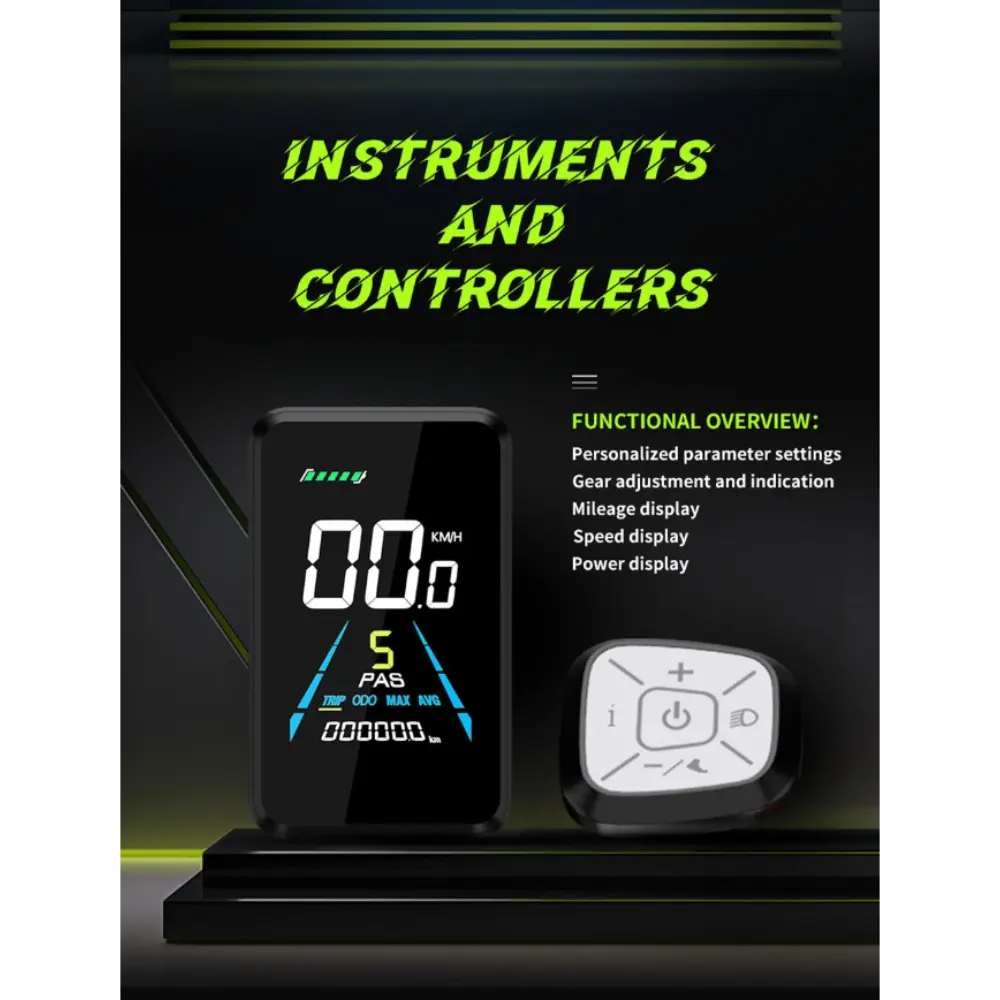

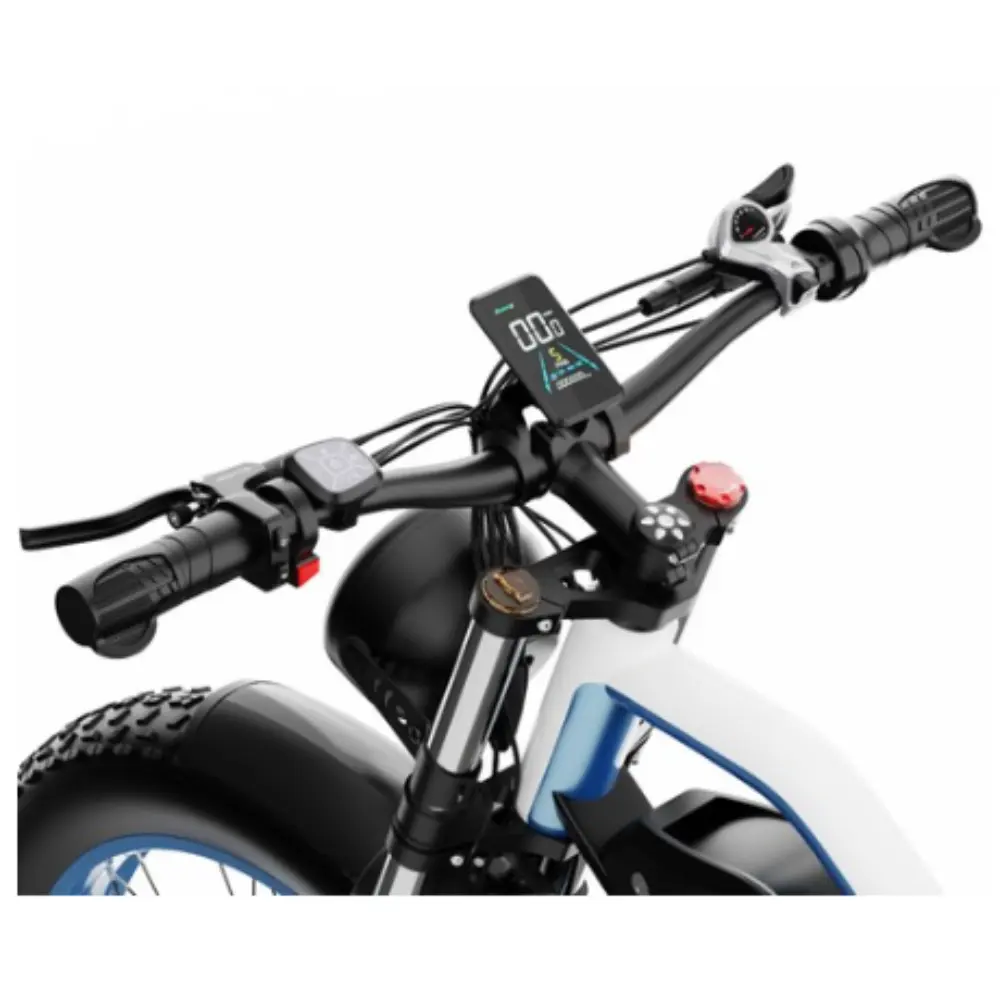

Display: 5-speed multifunction LCD
Riding modes: Pure electronic mode, pedal-assisted mode, riding mode
Brake: DYISLAND hydraulic brake
Seat tube: Aluminum alloy
Tire: 26*4.0″ inflatable tires
Fenders: front and rear fenders
Throttle: 158DX Electric Half-twist Throttle
With rear rack
Max climbing angle: 55°
Charging time: 8-10 hours
Size of N26 battery: 35*12*9cm, Net weight: 5.5kg
Foldable: No
Max load: 200kg
Suitable height: 170-200cm
Max speed: 55km/h
Saddle height: saddle distance from the ground 89-102cm
Charger: 54.6V 2A (Input: 110V-240V)
Controller: Sine Wave Controller (48V 25A Jing Hui controller) QQ: front comtroller, HQ: rear controller
Disc diameter: 160mm
Range: pure electronic mode 40-60km, pedal-assisted mode
120-150km (Depending on road conditions, speed, and driver’s weight)
Suspension: Front rear spring shock absorbers (not adjustable)
Front fork travel: 120cm
Weight & Size
Product Weight: 39.6kg
Package Weight: 48kg
Product Size(L x W x H): 190x113x71cm
Package Size(L x W x H): 157x34x82cm
Package Contents
1 x Electric Bike
1 x Battery
1 x Charger
1 x Tool Kit
1 x User Manual
